0.4 - 2 liter ATF Perfusion-SUB

Small size CellRetention keep HFF free from fouling



World only P-SUB for ATF method offer:

  • HFF (Hollow-Fibre-Filter) fouling free process with innovative diaphragm pump
  • 0.4 - 2 liter Working Volume fully pre-assembled P-SUB incl assembly of hoses and bottles
  • Alternating of broth by Thalia-TM100 diaphragm Alternating-Single-Use-Pump (A-SUP)

Industry leading architecture P-SUB pre-installed with:

  • HFF (Hollow-Fibre-Filter) with 3/4” TRI-clamp connection of your choice
  • Ground-breaking Laser controlled diaphragm Single-Use-Pump (SUP)
  • Single-Use-Sensors (SUS) for DO, pH, bio-mass, temp, level

The 3.2 liter VV P-SUB with pre-installed Thalia-TM100 with 600 mm long HFF on top of Thalia-TM100. Centre photo Thalia-TM100 with shown LASER. 3200 P-SUN next to TM100 and the Clotho Drive Unit.

CellRetention-3200 integrates SUB / A-SUP / HFF / SUS in one package:

  • 3,200 ml Vessel Volume (VV) with 5 x PG 13.5 ports (sourced from sister company CerCell)
  • 400 – 2,000 ml Working Volume (WV) ) in a OD 137 mm vessel
  • Integrated Single-Use-Sensor’s - OneFerm pH and VisiWell or PolarWell for standard DO Re-Usable-Sensor's
  • 3 free PG 13.5 port for other sensor's
  • Thalia-TM100 A-SUP facilitating fully controlled and measured broth volume - see Thalia spec
  • Thermal control either electrical or with water
  • A. Spectrum HFF with 0.2 µm pore, ?? x 1.0 mm PES straw/lumen, ??? cm2 area, ½" TRI-clamp, Luer-Lok side ports, (T06-P20U-10-N)
  • B. Spectrum HFF with 0.2 µm pore, 75 x 1.0 mm straw/lumen, ??? cm2 area, ¾" TRI-clamp and ½" side ports, (S0?-P20U-10-N)

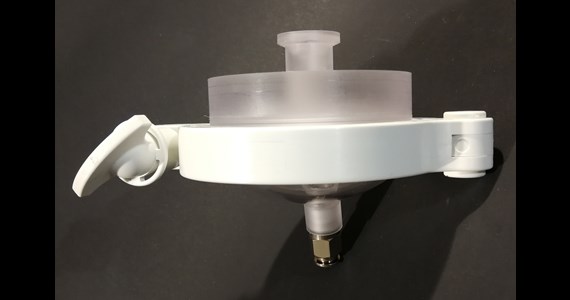

Thalia-TM100 A-SUP with the MidiKros HFF with 75 straw and ¾” TRI-clamp permeate outlet mounted on Thalia-TM100 with ¾” TRI-clamp connections for broth retentate exchange. Extensive assembly with 3 bottles and hoses installed as well. To the right the InCyte patch is seen with sensor module.

Thalia M100 A-SUP for Clotho Drive Unit:

  • The diaphragm Alternating-Single-Use-Pump (SUP) integrate no valves. And as to such simplified operation only exchange broth forth and back – all along the HFF. The HFF receive broth from the SUB and return the same broth volume back through the HFF to the SUB
  • The A-SUP dome is designed with ¾ TRI-clamp flange and hereby fits the HFF coupling
  • The A-SUP operation is controlled by the super compact Clotho Drive Unit which insure exchange of broth volume

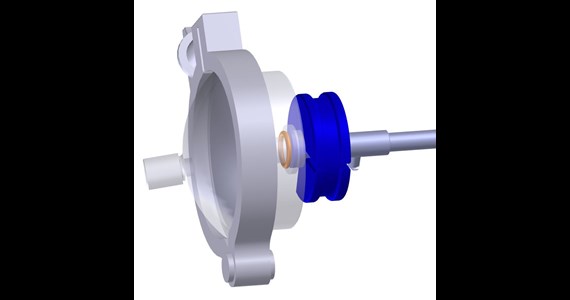

Its easy to see that no valve body is included within the A-SUP. So, the Thalia is not a pump - but a broth exchanger. Insuring dual directional broth flow. Described also as alternating broth flow or reciprocating broth flow.

SUS - Single-Use-Sensor’s to choose from:

  • One port for either PolarWell or VisiWell Single-Use-Well (SUW) for 220 mm RUS
  • One port for 225 mm OneFerm or FermProbe pH Single-Use-Sensor (SUS) S8 socket, classical signal
  • InCyte ARC bio-mass sensor patch optional installed horizontal at bottom
  • Reduce vastly or eliminate components sterilized in conventional autoclave.

More information about CellRetention P-SUB to be found under Support
