Vacuum supply from Europa family
Stand-alone CE certified and EMC compliant pump system for supplying vacuum for Clotho, Lachesis drive units.
|
Product, model name |
Alagonia-50 |
|
Purpose |
Vacuum |
|
Drive gas vacuum supply |
<0.01 bar absolute |
|
Rated capacity, nl/min |
50 |
|
Power supply |
24 DC - 5 amp |
|
Noise level, dBa |
55 |
|
Hephaestus cabinet size |
U3 |
|
Weight, kilo |
6.5 |
Design
Alagonia-50 includes a scroll compressor for oil-free and continues operation. Will supply four Clotho drive unit with vacuum when connected to reservoir. The electrical motor is a Brush-Less-Direct-Current (BLDC) motor for >30,000 hour lifetime. Two ventilation fans integrated inside the U3 cabinet keep the compressor cool.

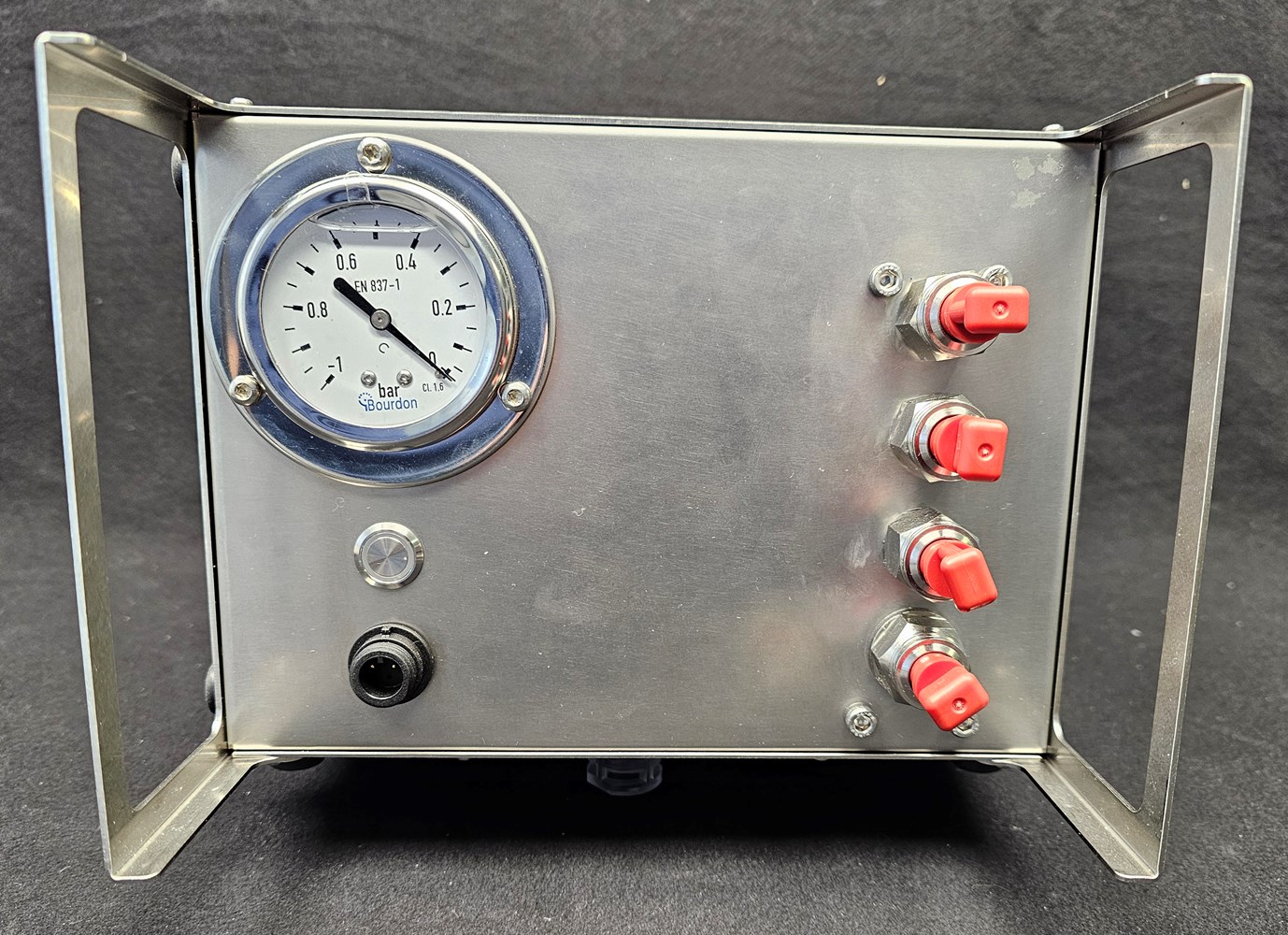

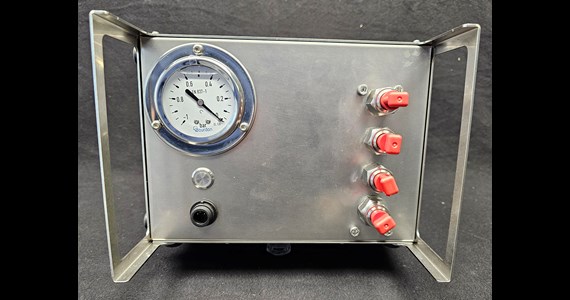

In & Out
- 24 VDC supply socket
- 1 x OD16 x ID12 mm one-touch coupling to 5 liter vacuum storage tank
- 3 x OD16 x ID12 mm one-touch coupling for vacuum supply to drive units
Including 5 liter stainless-steel vacuum storage, reservoir container.
Price, availability and p/n – look under Commerce
