LASER controlled SUPs – series 32
A series of scalable LASER guided Air-Operated-Diaphragm-Positive-Displacement (AODPD) Single-Use-Pumps (SUPs) designed for a range of purposes. All SUPs to be controlled by the Clotho or Lachesis or Atropos Drive Units.
All SUPs supplied double bagged and E-beam irradiated. Will not handle autoclaving!
If you prefer one of the SUPs pre-assembled with your preferred HFF - ask us.
1 – Thalia LASER guided Alternating-Single-Use-Pump’s excluding valves moving fluid from the SUB through the HFF and back to the SUB.
Designed to operate in ATF mode connected to one HFF solving the well-known problems with fouling HFF.
|
|
|
Description of diaphragm SUPs, no LASER sensor, one LASER support included, MOQ = Minimum Order Quantity |
|
Unit price |
|
RLS-small |
Red-LASER-Support (RLS) which fit Clio O-SUP and Thalia A-SUP sizes M80, M100, M140, M200 with brackets to be mounted easily, MOQ: 2 unit – LASER not included. |
32-0010 |
300 |
|
|
RLS-big |
Red-LASER-Support (RLS is re-useable) which fit Clio O-SUP and Thalia A-SUP sizes M300 with brackets for LASER to be easily mounted, MOQ: 2 unit – LASER not included. |
32-0020 |
300 |
|
|
Thalia TM80/30 |
A-SUP Thalia TM80/30 with Luer-Loc or TRI-flange connection, no LASER, RLS, SSF included, choose L or T, MOQ/Package: 1 unit |
32-2105-? |
950 |
|
|
Thalia TM80 |
A-SUP Thalia TM80 with TRI-flange or Luer-Loc or for HFF direct connection, no LASER, RLS, SSF included, MOQ/Package: 1 unit |
32-2110 |
950 |
|
|
SSF-TM80 |
Re-Useable Stainless-Support-Foot with 3 threaded stays to bolt the Thalia TM80 A-SUP onto |
32-2119 |
1000 |
|
|
Thalia TM100 |
A-SUP Thalia TM100 with ¾” TRI-flange, no LASER, RLS, SSF included, MOQ/Package: 1 unit |
32-2120 |
1500 |
|
|

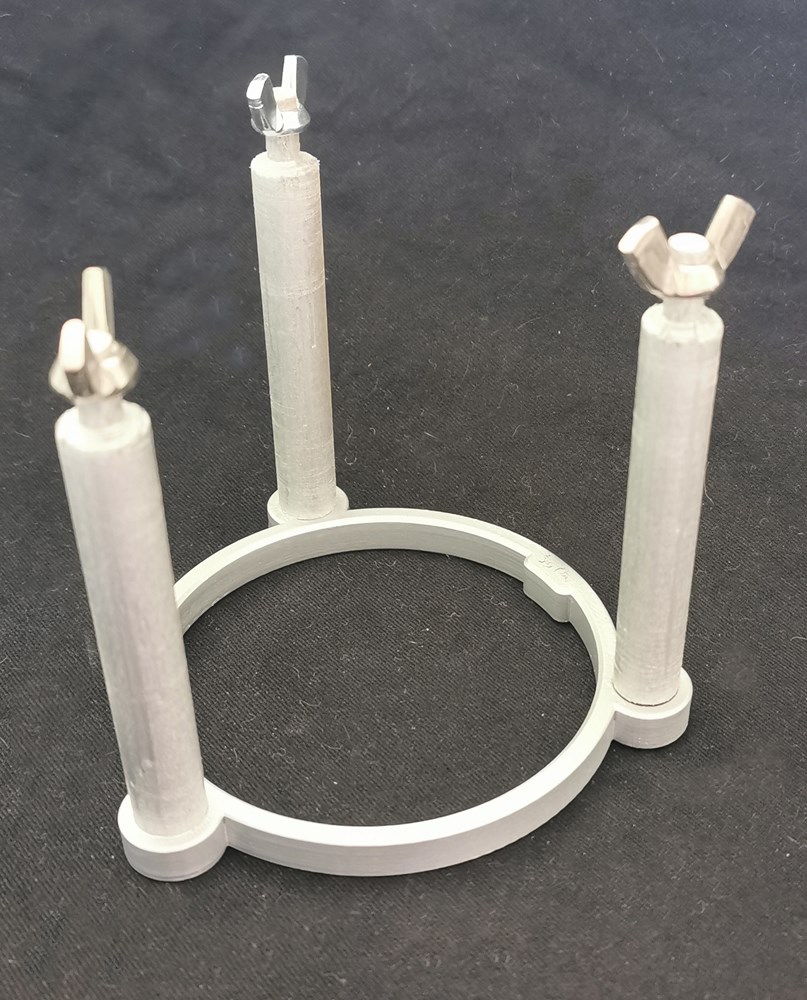

SSF-TM100 |
ReUseable Stainless-Support-Foot with 3 threaded stays to bolt on the Thalia TM100 A-SUP |
32-2129 |
1100 |
|
|
Thalia TM140 |
Thalia TM140 with 1½” TRI-flange or for HFF direct connection, no LASER, RLS, SSF included, MOQ/Package: 1 unit |
32-2130 |
2000 |
|
|
SSF-TM140 |
Re-Useable Stainless-Support-Foot with 3 threaded stays for the Thalia TM140 A-SUP to bolt onto |
32-2139 |
1200 |
|
|

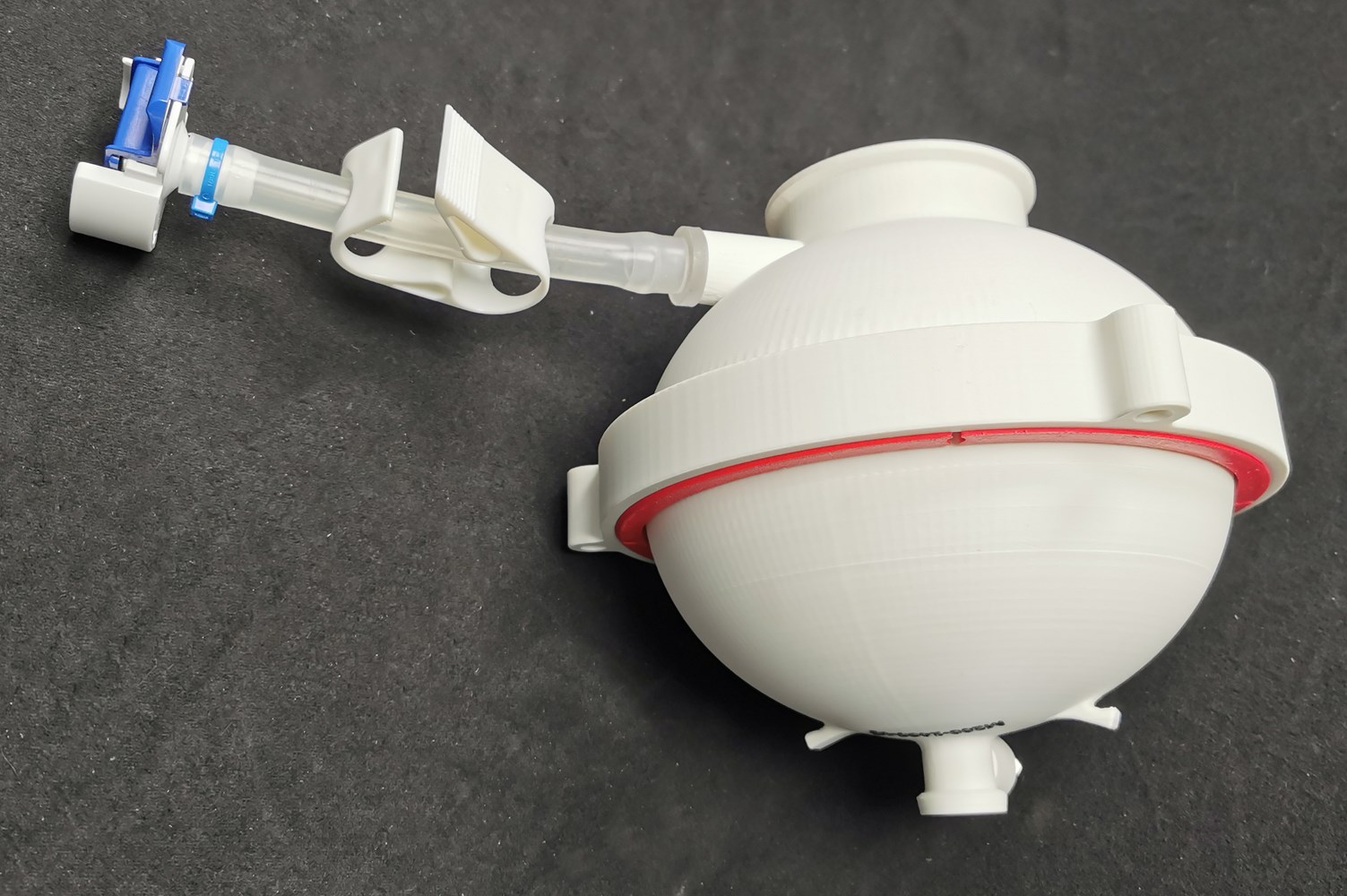

Thalia TM200 |
Thalia TM200 with 3” TRI-flange, no LASER, RLS, SSF included, MOQ/Package: 1 unit |
32-2140 |
4000 |
|
|
SSF-TM200 |
Re-Useable Stainless-Support-Foot with 3 Stainless Steel threaded stays to bolt the Thalia TM200 A-SUP onto |
32-2149 |
1500 |
|
|

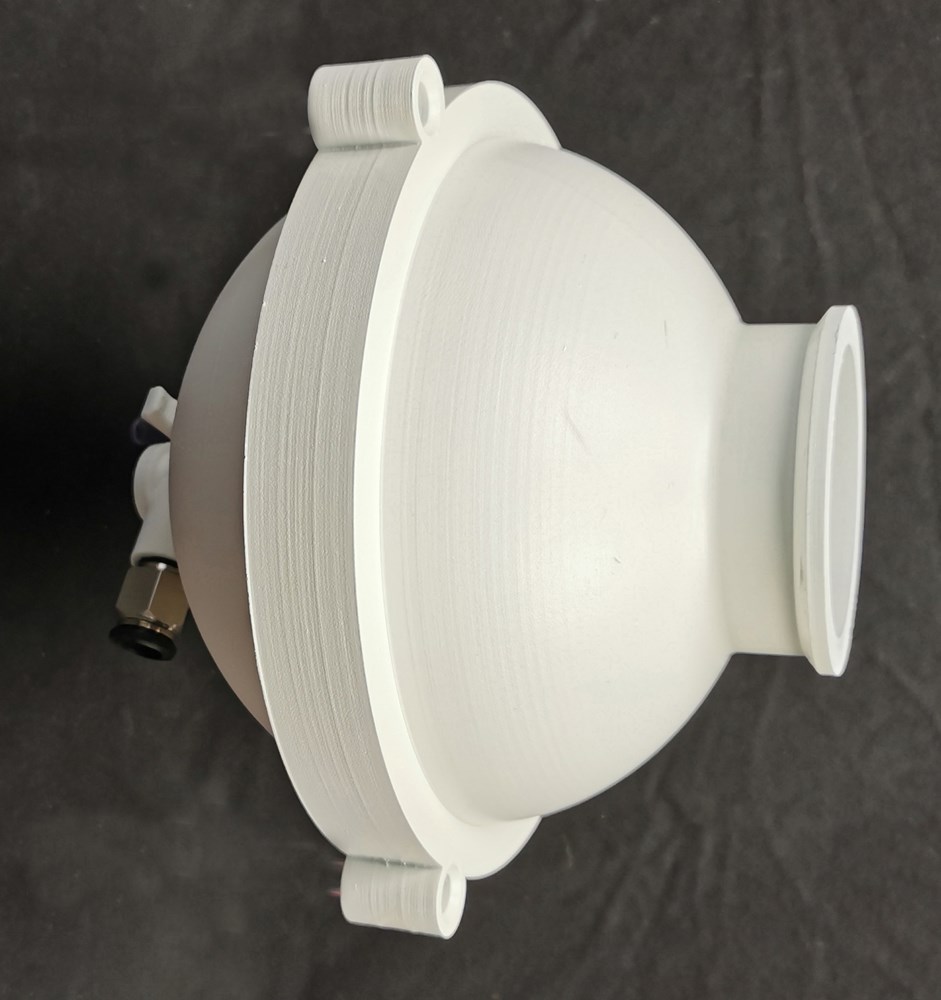

Thalia TM300 |
A-SUP Thalia-TM300 with 6" or 8” TRI-flange, 24 mm drive gas connection and red LASER support, no LASER sensor and no SSF included, MOQ/Package: 1 unit |
32-2160 |
Ask us |
|
|
SSF-TM300 |
Re-Useable Stainless-Support-Foot with 6 Stainless Steel threaded stays / bolts for easy bolt onto the Thalia TM300 A-SUP |
32-2169 |
3000 |
Clotho, Lachesis, Atropos Drive Units requires pressured air and vacuum in order to operate. LASER sensor included with Drive Units.
2 – Clio LASER guided OneWay-Single-Use-Pump’s, including dual silicone passive valves guiding the fluid flow in one direction. From the SUB through the HFF and returned to the SUB.
Designed to operate as stand-alone conveying a fluid and in TFF mode connected to a SUB and one HFF - solving the problems with fouling HFF.
|
|
|
Description of diaphragm SUPs, no LASER sensor, one LASER support included, MOQ = Minimum Order Quantity |
|
Unit price |
| RLS-small | Red LASER-Support which fit Clio O-SUP and Thalia A-SUP sizes M80, M100, M140, M200 with brackets to be easily mounted, MOQ: 2 unit – LASER not included. |
32-0010 |
300 |
|
|
RLS-big |
Red LASER-Support which fit Clio O-SUP and Thalia A-SUP sizes M300 with brackets to be easily mounted, MOQ: 2 unit – LASER not included. |
32-0020 |
300 |
|
|

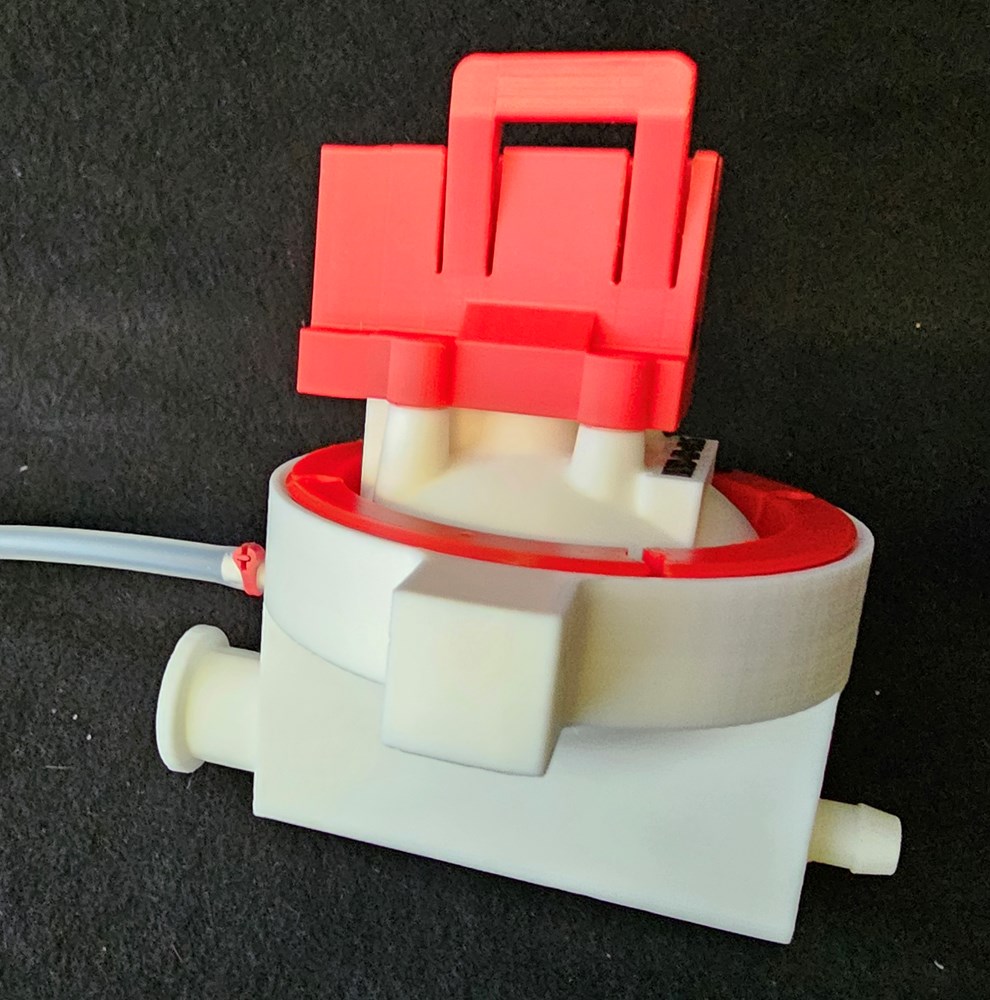

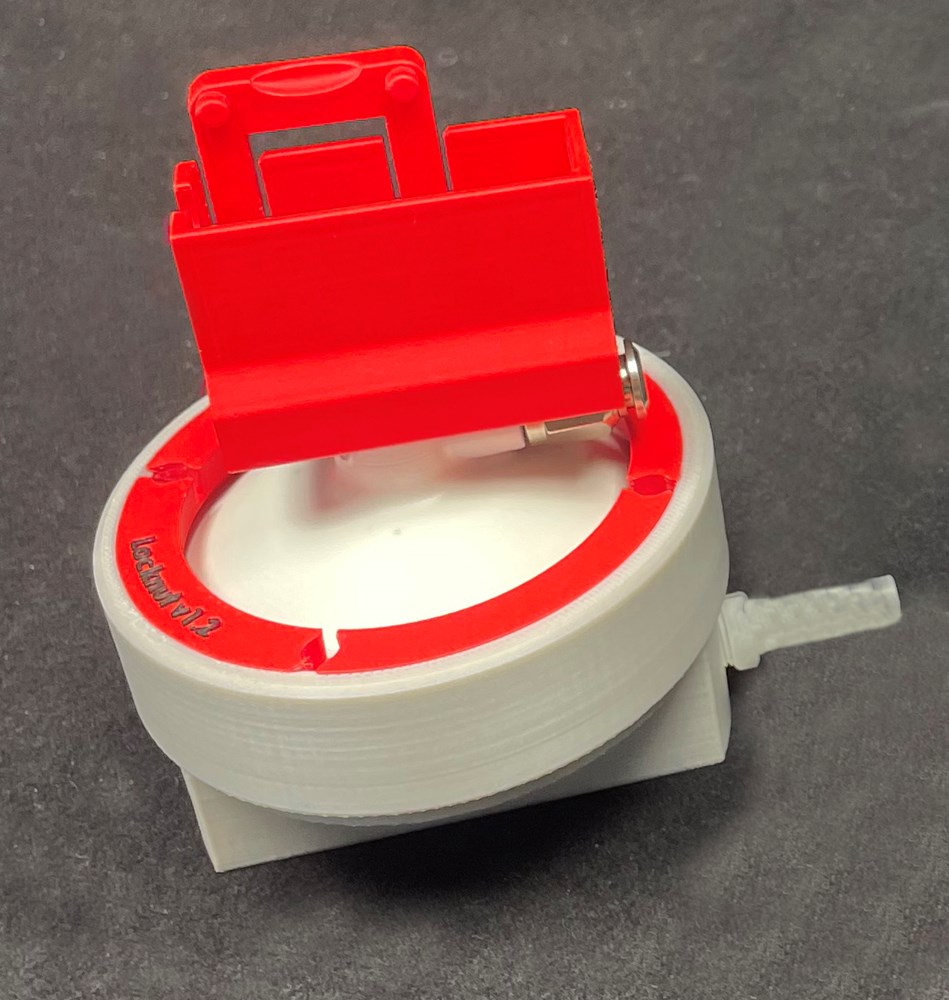

Clio CM80/30 |
O-SUP Clio CM80/30 with Luer-Locs or barbs, or 3/4" TRI-flanges, no LASER, combined RLS and foot included, choose L or T, MOQ/Package: 1 unit |
32-2200 |
1,500 |
|
|
Clio CM80/60 |
O-SUP Clio CM80/60 with barbs and/or 3/4" TRI-flanges, no LASER, RLS and foot included, MOQ/Package: 1 unit |
32-2210 |
1,500 |
|
|

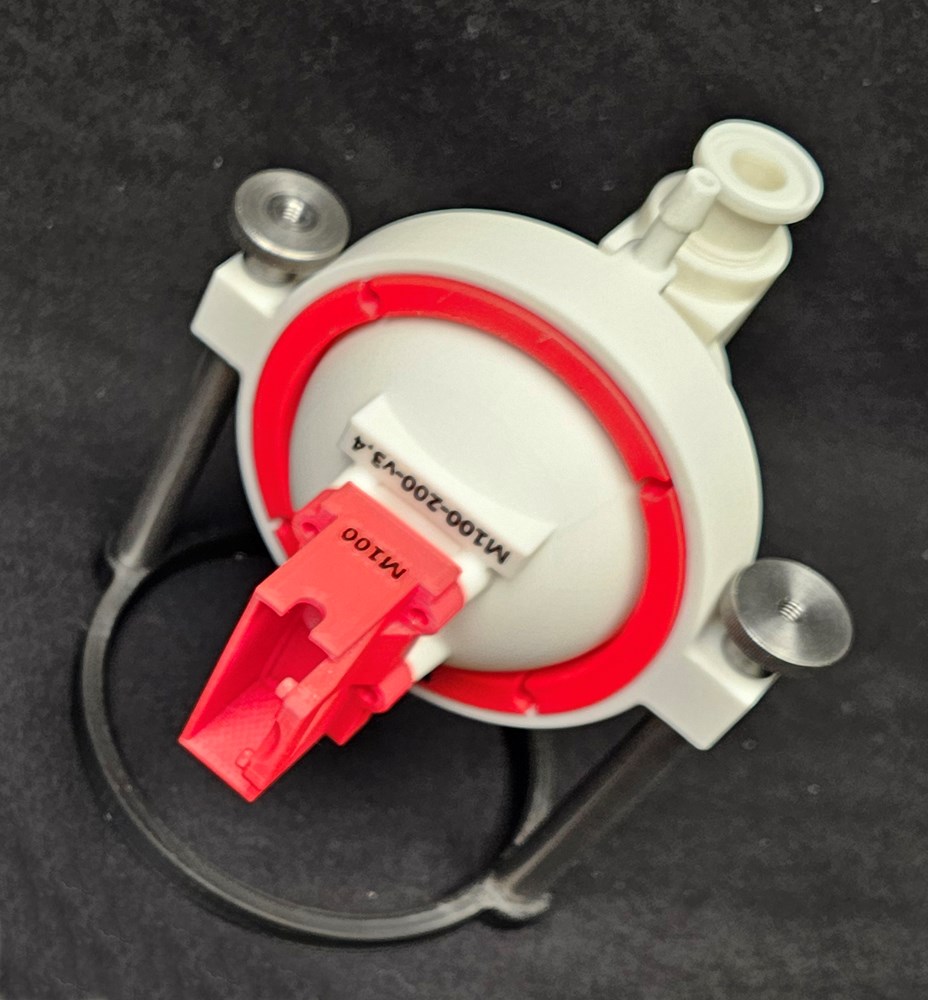

Clio CM100 |
O-SUP Clio CM100 with barb and/or 3/4" TRI-flange, no LASER, RLS included, MOQ/Package: 1 unit |
32-2220 |
1,500 |
|
|
Clio CM140 |
O-SUP Clio CM140 with bard and/or 1½” TRI-flange, no LASER, RSL included, MOQ/Package: 1 unit |
32-2230 |
2,000 |
|
|
Clio CM200 |
O-SUP Clio CM200 with barb and/or TRI-flange, 12 mm drive gas connection, MOQ/Package: 1 unit |
32-2240 |
4,000 |
Clotho and Lachesis Drive Units requires pressured air and vacuum in order to operate. LASER sensor included with Drive Units.
