Clotho-2 software

Software design for two Clio or Thalia

Clotho-2 dual channel drives selectable Clio O-SUP and or Thalia A-SUP. Clotho copies the purpose of Medulla in the brain and the heart’s Sinoatrial Node and combines the features with the ability for interaction, programming, and functionality. Clotho take advantage of the build-in Apollon brain and receives real-time signals from pressure, temperature, and displacement Laser sensor. Apollon regulate by positive feedback control a set of proportional valves for the BpM, and the driving force and movement of the elastic Myocardium wall inside the Clio O-SUP or Talia A-SUP.



5-screen dump Clotho-2.PNG1-screen dump Clotho-2.PNG2-screen dump Clotho-2.PNG3-screen dump Clotho-2.PNG4-screen dump Clotho-2.PNG

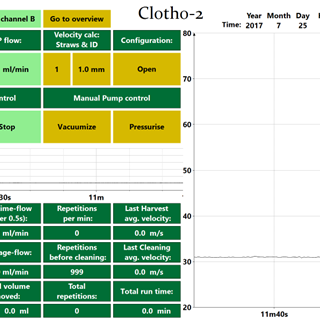

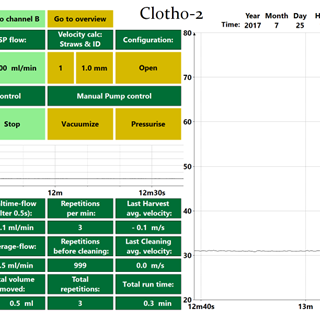

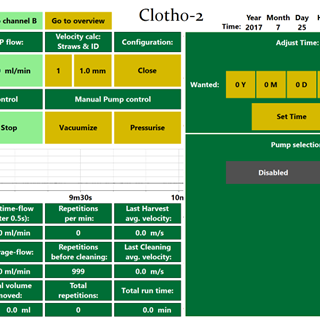

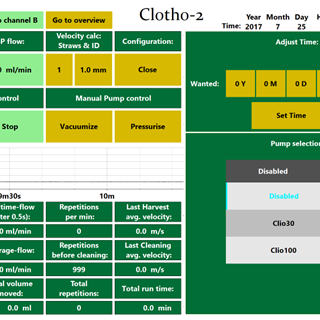

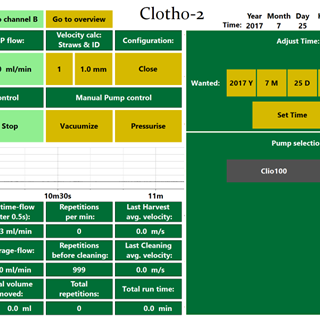

Different screen dump’s of the GUI from Clotho software version A.64

10-screen dump Clotho-2.PNG6-screen dump Clotho-2.PNG7-screen dump Clotho-2.PNG8-screen dump Clotho-2.PNG9-screen dump Clotho-2.PNG

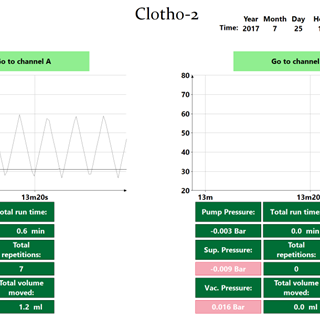

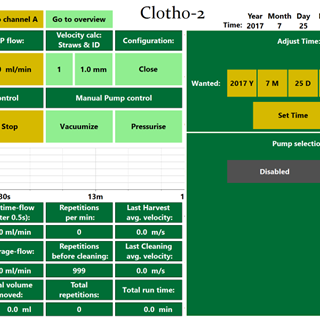

Different screen dump’s of the GUI from Clotho-2 software version A.64

Here is the basics behind the software:

  • Cardiac Output (CO) = total pumped volume, SUP capacity, ml/min (CO = BpM x SV)
  • Beats-per-Minute (BpM) = determined by the diaphragm diameter, ranging 0-25
  • Stroke Volume (SV) = programmable from 0-100%
  • HFF spec, number of Lumens and their ID = cleaning cycle velocity 0 - 10 m/s
