Clotho and Lachesis drive SUPs used in series 30, 31, 32, 33, 34 P-SUBs
Clotho - are the smallest of the 3 sisters - a dual channel Drive Unit for two independently operating small SUPs.
Lachesis – drives a larger range of SUPs – a single channel Drive Unit operating one SUP.
- Clio diaphragm OneWay-Single-Use-Pump's (O-SUP) integrated with CellMembra P-SUBs
- Thalia diaphragm Alternating-Single-Use-Pump's (A-SUP) integrated with the CellRetention P-SUBs
|
Product, model name |
Clotho |
Lachesis |
|
Purpose (M descried the diaphragm OD) |
SUP drive M60, M80 |
SUP drive M60, M80, M100, M140 |
|
Drive gas pressure supply |
>1.5 - <4 bar atmospheric |
>1.5 - <4 bar atmospheric |
|
Drive gas vacuum supply |
<0.1 bar absolute |
<0.1 bar absolute |
|
Power supply |
24 VDC, 2 amp |
24 VDC, 3 amp |
|
Hephaestus cabinet size |
U2 |
U2 |
|
Weight, kilo |
4.5 |
5 |
Design
Clotho and Lachesis software (Linux and Codesys) is loaded into the ultra compact Drive Unit maximizing the performance of Clio type of One-way-Single-Use-Pump and the Thalia Alternating-Single-Use-Pump.
Clio and Thalia SUPs is integrated with a SepraPor HFF and a Single-Use-Bioreactor (SUB) for high density cell cultivation operating in perfusion mode. The P-SUBs (any of series 30, 31, 32, 33, 34) integrates either the Clio or Thalia (O-SUP or A-SUP) with the Hollow-Fiber-Filter (HFF), and Single-Use-Sensors (SUS) - all in one package ready to use. Clotho Drive Unit controls accurately the pumped/exchanged volume and the velocity of the feed stock / broth passing along/through the HFF. Built-in pressure sensors measure increasing DeltaP / ∆P along the HFF for software to jump between many harvest cycles to few cleaning cycles and back to harvest mode.
Driving Clio or Thalia requires pressurized air and vacuum. The drive gas pressure and broth mass-flow are continuously adjusted by sets of proportional valves inside Clotho. The intelligent software with advanced PID algorithms gets information from the LASER and multiple pressure sensors. Any of the 3 sisters (Clotho, Lachesis, Atropos) operate as stand-alone Drive Units or combined with other Cronus-PCS devices.

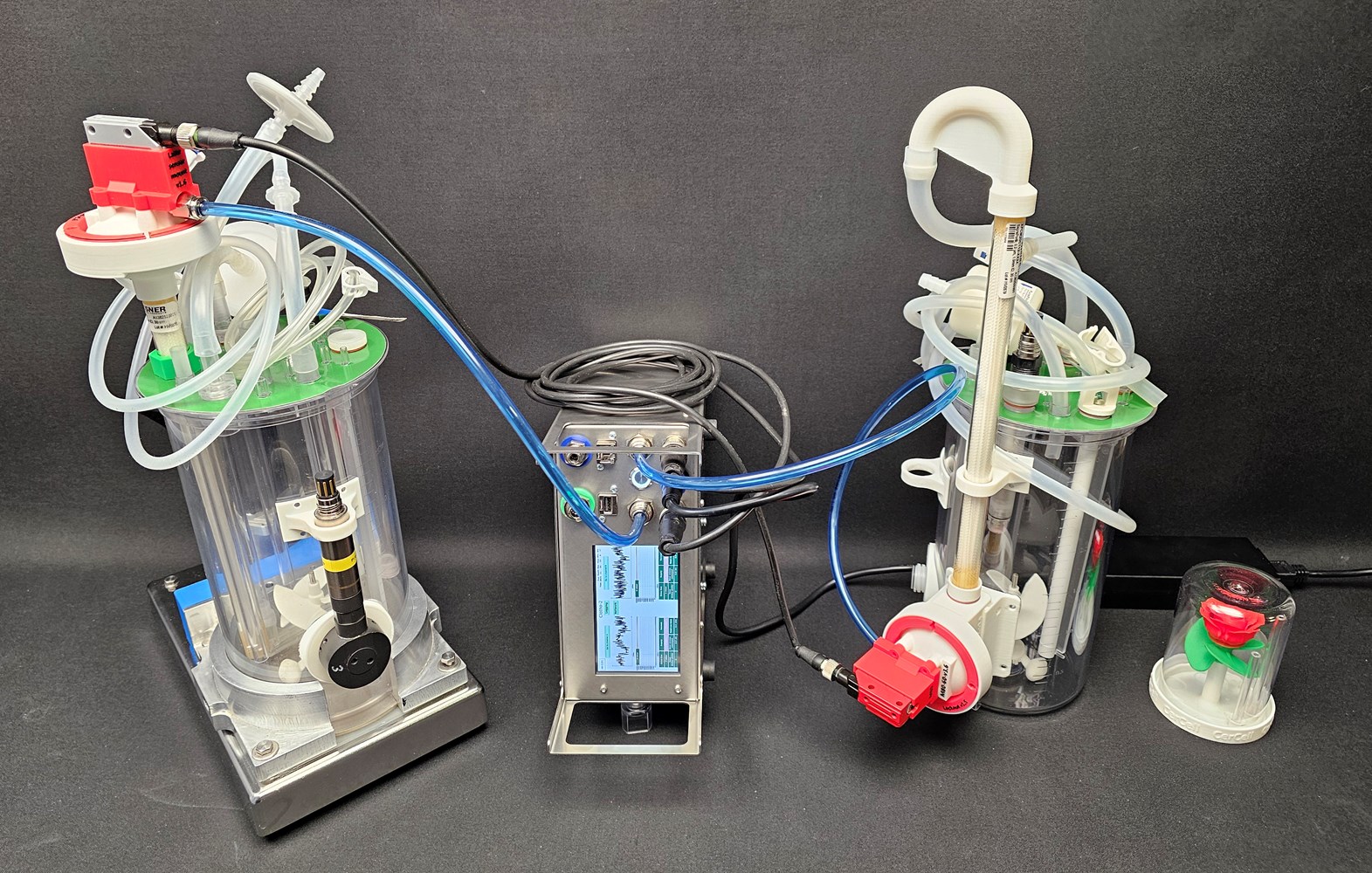

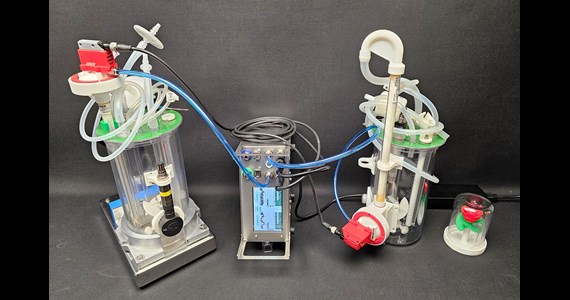

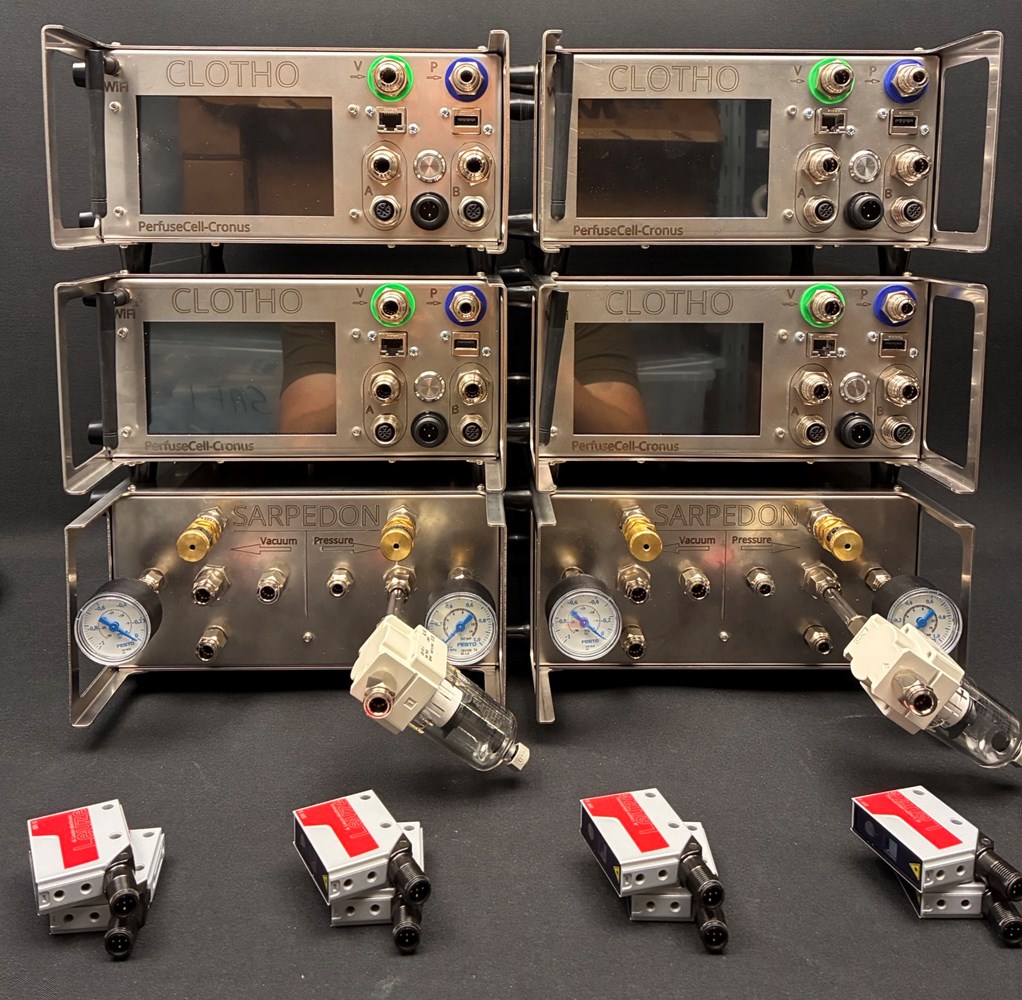

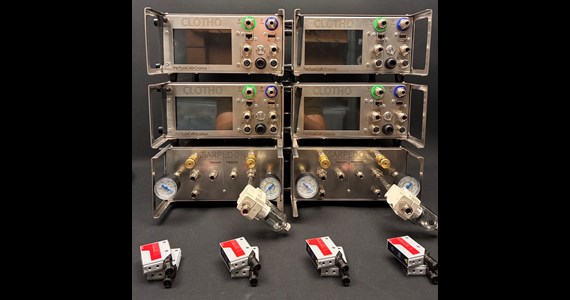

Clotho dual channel in Hephaestus Stainless Steel U2 cabinet shown driving on left a TM80 ATF P-SUB on MST and on right side a CM80 TFF P-SUB. The middle photo show the Drive Unit including the red LASER sensor. Further two Clotho towers assembled each with one Sarpedon reservoir. This fully independent setup is ready to use right out of the box combined able to drive 2 x 4 P-SUBs all in parallel.
Specification
When Clotho is connected to gas supply from both a pressure and vacuum source with sufficient capacity, then the spec is:
- Drive of one or two Clio or two Thalia size M60 or M80 simultaneously or mixed
- Drive of one Thalia-M100 with both channels combined
- Pumped volume (Cardiac Output/CO) according to stroke length and SUP size
- Stroke volume, %: 1 – 100
- Clotho inform about velocity according to programmed HFF info input, m/s: 0.1 – >10
- Passive cooling of electronics with no ventilation openings (fully closed splash-proof cabinet)
When Lachesis is connected to gas supply from both a pressure and vacuum source with sufficient capacity, then the spec is:
- Drive of one Clio or Thalia size M60 or M80 or M100 or M140
- Pumped volume (Cardiac Output/CO) according to stroke length and SUP size
- Stroke volume, %: 1 – 100
- Lachesis inform about velocity according to programmed HFF info input, m/s: 0.1 – >10
- Passive cooling of electronics with no ventilation openings (fully closed splash-proof cabinet)
Please check:
Supply gas is defined as: 1 - "Supply gas pressure" and; 2 - "Supply gas vacuum". Sufficient supply is when the volume (measure in "normal liter/min") of both pneumatic pressure and vacuum quality is 1-2 times the planned CO in "nl" at specified pressures.
Suitable supply gas pump's, also in Hephaestus cabinet's are Alagonia. Check also out the Sarpedon reservoir stabilizing pressure/vacuum and reduce pulsation when several SUPs operate on the same source of supply gas.
Clotho can off course be driven by in lab installed pneumatic air and sufficient vacuum capacity.
Communication
- Internal 5” touch sensitive TFT display or external to PADs or smartPhones via Wi-Fi for programming and info from the built-in webserver - display can be blocked from Lucullus
- USB port for USB adapter
- Separate antenna for Wi-Fi connection from 2026
- RJ45 for IP/TCP via LAN and ModBus / OPC-UA communication
- 24 VDC inlet via one Buccaneer 3 pole connector
- LASER class 2 sensor, 650 nm wavelength, <1.2 milli Watt power, IP67 - see safety notice under Download/Manuals
- Data collection / acquisition via SQLite or via OPC-UA and DeltaV or DASware or Lucullus software from SecureCell
