ATF-SUBmerged™ 250 "Easy-Connect" kit for Modular SUBs
Revolutionizing CellRetention-250-kit-Modular SUBmerge SepraPor® HFF (Hollow-Fibre-Filter) directly into the SUB eliminating dead volumes. Inverted innovative LASER guided Thalia diaphragm Single-Use-Pump direct couple to HFF reduce shear stress, eliminate cell accumulation and well known HFF fouling.
CellRetention-250-kit-Modular unique arrangement integrates 3 components into one for very easy installation. "Easy-Connect" Modular takes care of agitation, aeration, pH, DO and media. Clotho drive unit controls Thalia diaphragm pump which takes care of ATF perfusion and protects the HFF.
Clotho Drive Unit integrates pressures, vacuum, volume sensing eliminating the need for external sensors for HFF DeltaP / ∆P pressure drop, mass-flow measurements. Clotho process software masters accurately the programmable stroke volume, number of strokes, the allowed pressure drop / DeltaP / ∆P along the HFF for fully automatic low alternating broth velocity and fully selectable higher broth velocity for the sequential lumen cleaning eliminating HFF blockage.

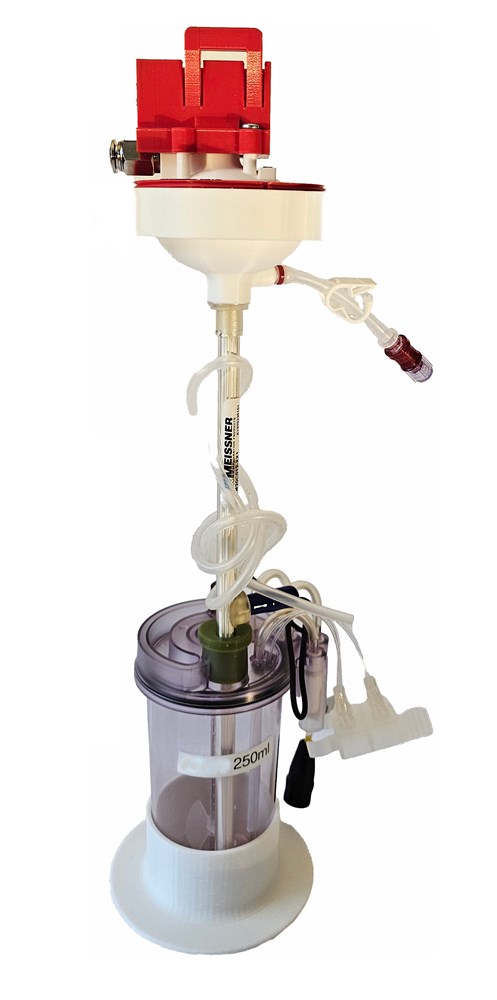

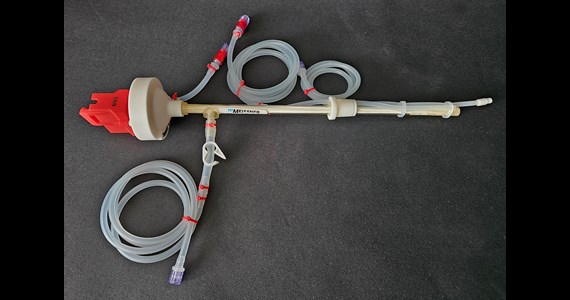

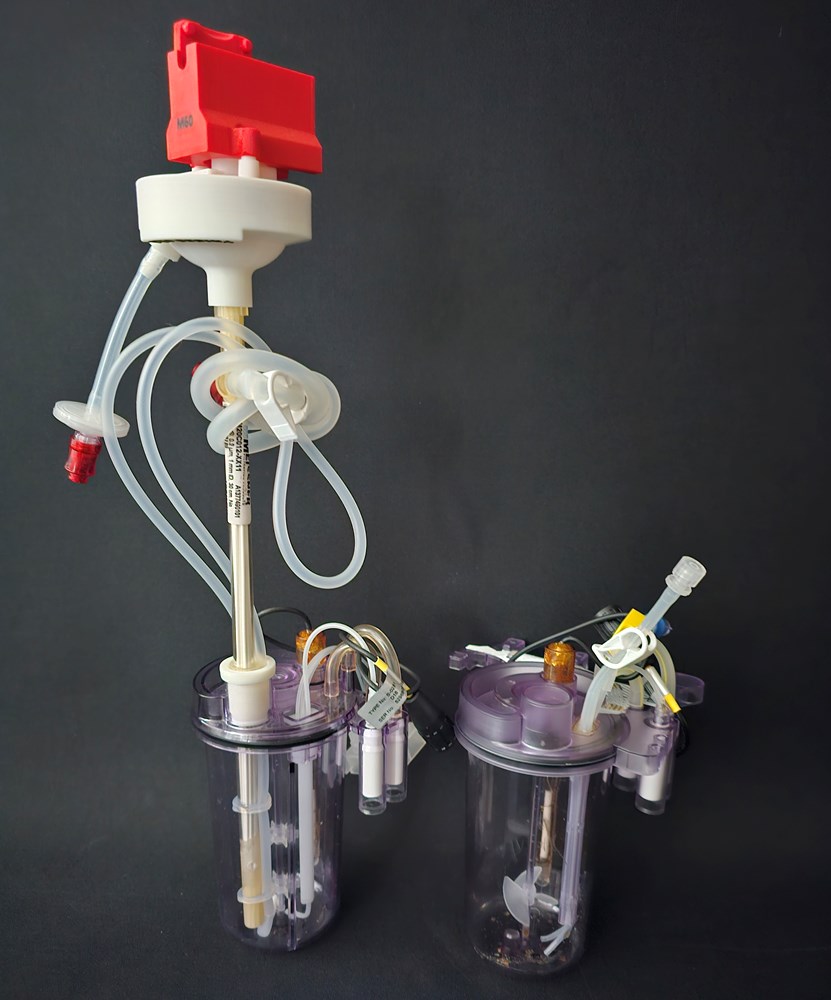

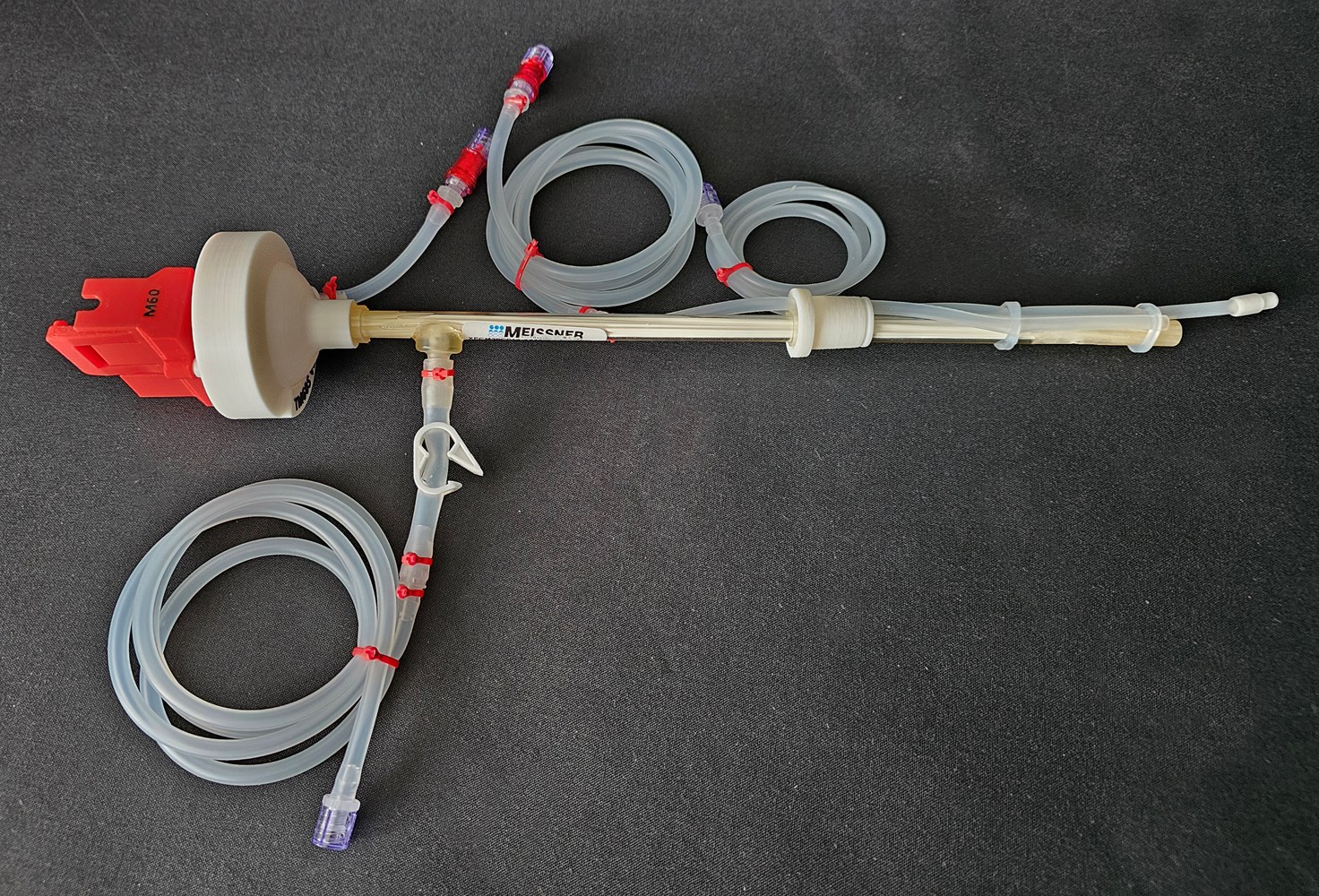

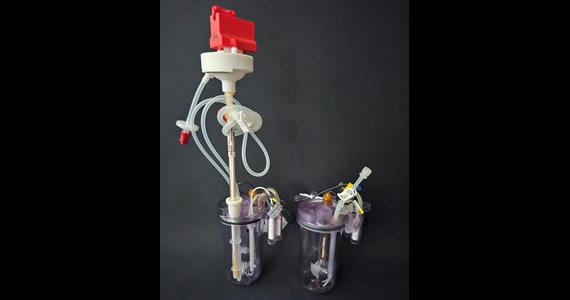

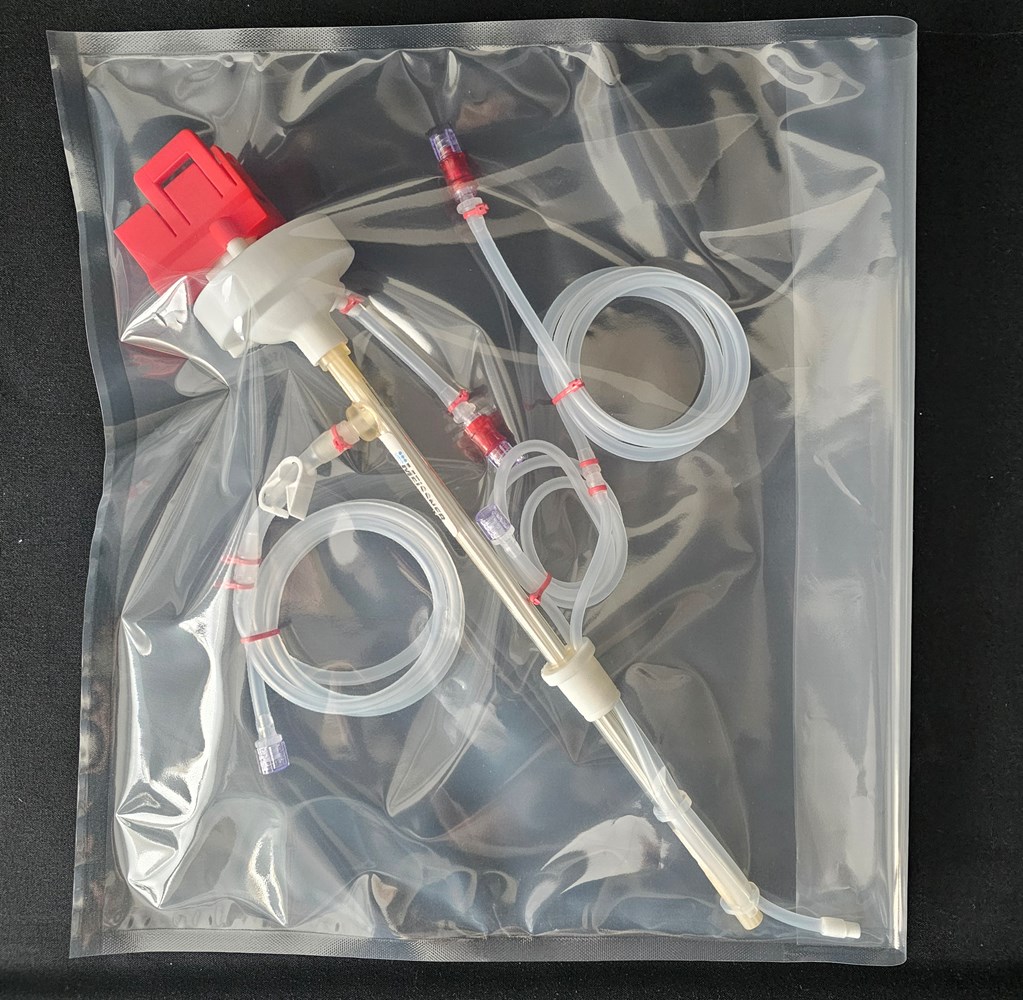

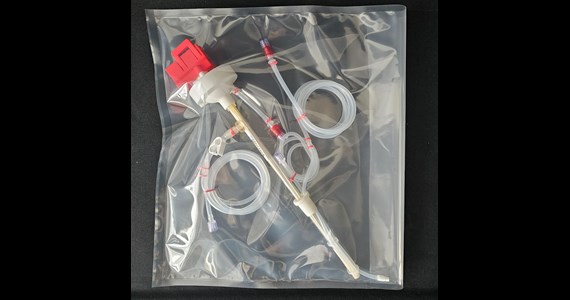

Left photo shows the Modular PCS with two CellRetention-250-kit-Modular installed. Center photo shows the CellRetention-250-kit-Modular (version 3) as delivered ready for installation. Right photo shows the kit vacuum packed ready for E-beam irradiation.
INSIDE the SUB the CellRetention-250-kit-Modular include:
- The SepraPor HFF model C012 / OD9.5 mm (manufactured by Meissner Corp)
- A ID3xOD5 deep-tube silicone hose for sampling, additional liquids, etc

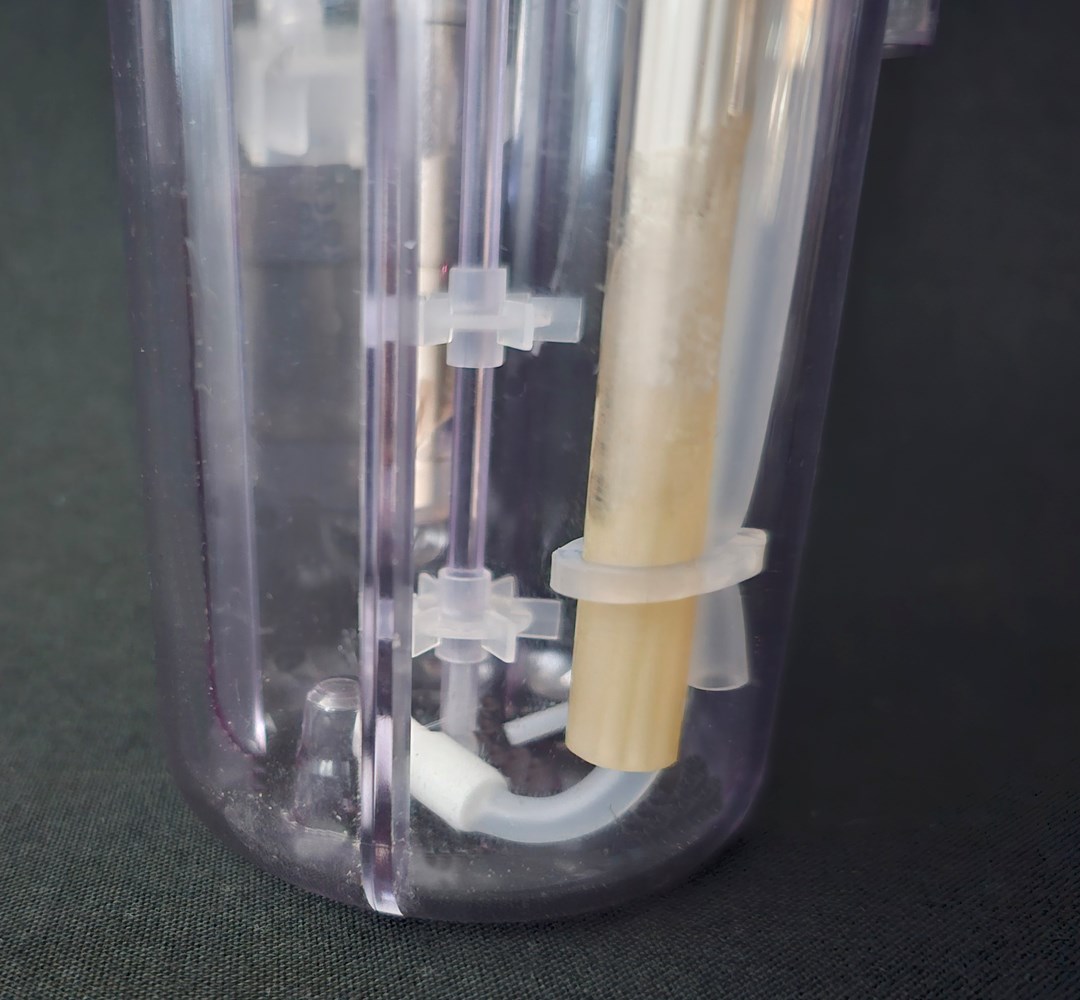

- A ID3xOD5 hose connects to the 25 µm micro porous sparger body
OUTSIDE the SUB the CellRetention-250-kit-Modular include:
- Thalia™ TM60 LASER guided Single-Use-Pump controlled by outstanding Clotho™ drive unit and its software with unlimited opportunities
- 900 mm weldable OD6.4 x ID3.2 hose connected to SepraPor permeate barb
- 900 mm weldable OD6.4 x ID3.2 hose connected to silicone hose deep-tube
- 900 mm weldable OD6.4 x ID3.2 hose connected to unique 25 µm pore glass frit
The kit (version-3):
- The complete and pre-assembled CellRetention-250-kit-Modular packed dry in dual film bags and precision irradiated – easy to install the kit under the hood
- Includes the inverted Thalia TM60 SUP on top of the HFF
- Includes SepraPor 110 cm2 / 0.2 µm pore / 1 mm lumen for trouble free operation
Benefits:
- Alternating broth volume, number of strokes and velocity fully programmable, accurately measured and fully repeatable – no process guessing
- SUBmerged™ and Direct-Fit™ HFF eliminating shear stress caused by conventional Luer-Lok™ fittings
Installation (inside the hood):
- Very simple - remove the original 20 mm sample port plug
- Insert the kit with the white nylon plug into the sample port
- Rotate the nylon plug until the sparger body is positioned appropriate under the impeller not blocking the sensor spot - that’s it !!
- Don’t forget to pre-wet HFF as usual by adding 200 ml suitable liquid into the SUB. Activate Clotho for 15 strokes and pump entire volume out through the permeate port by external peri pump.
- Find Tips & Tricks here - https://perfusecell.com/perfusion-support/tips-tricks-in-details/tips-tricks-small-volume

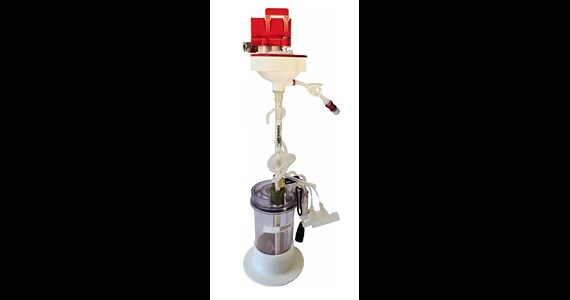

CellRetention ATF for Modular
250 ml micro sparger - ver-3

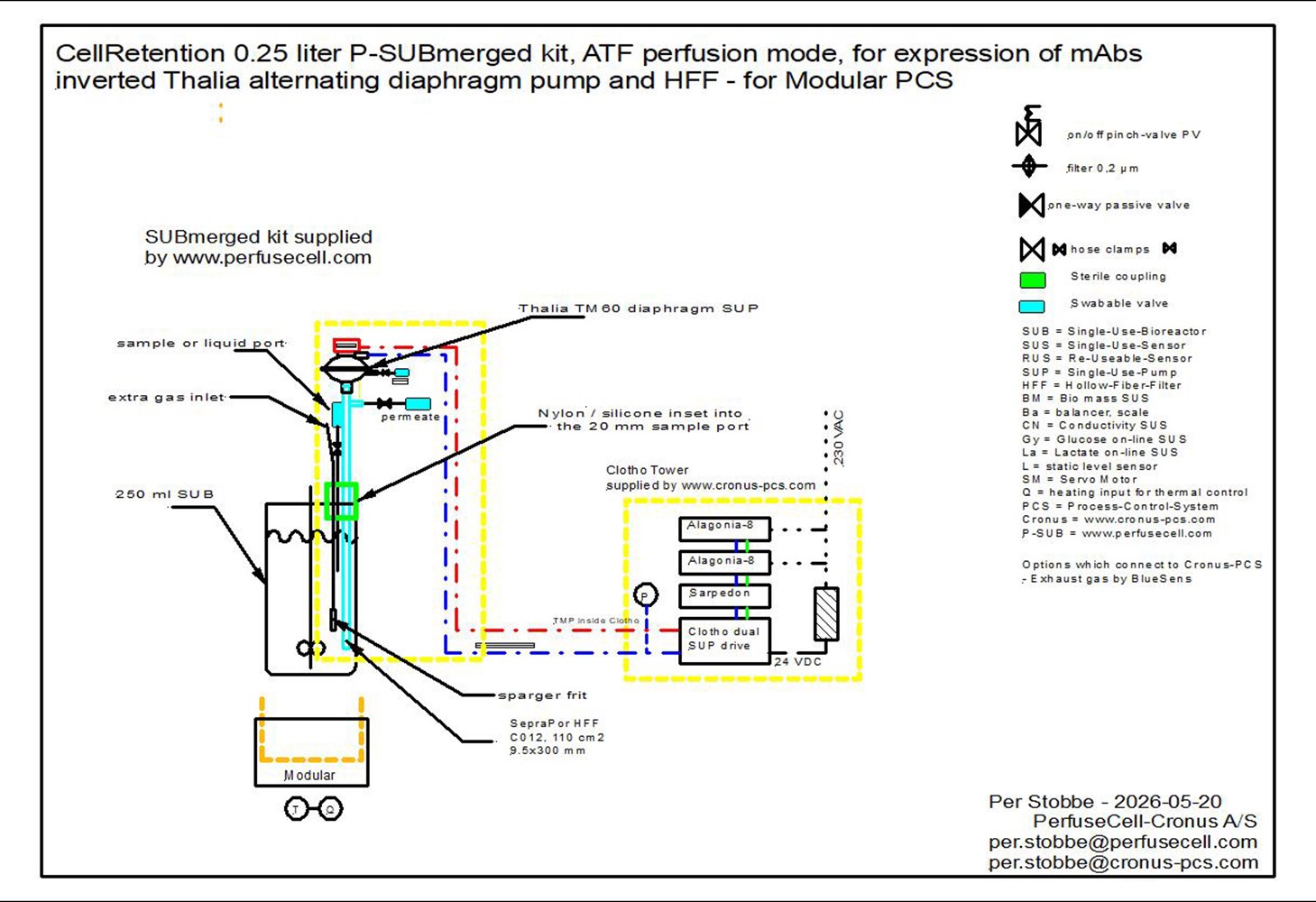

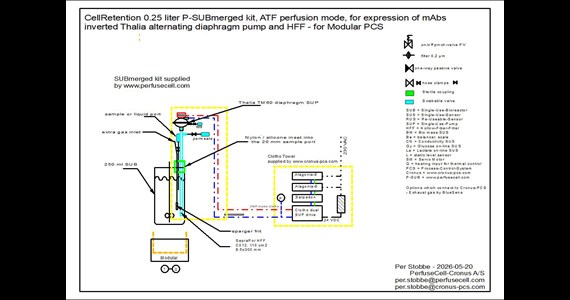

SUBmerged 0.25 liter ATF HFF Modular

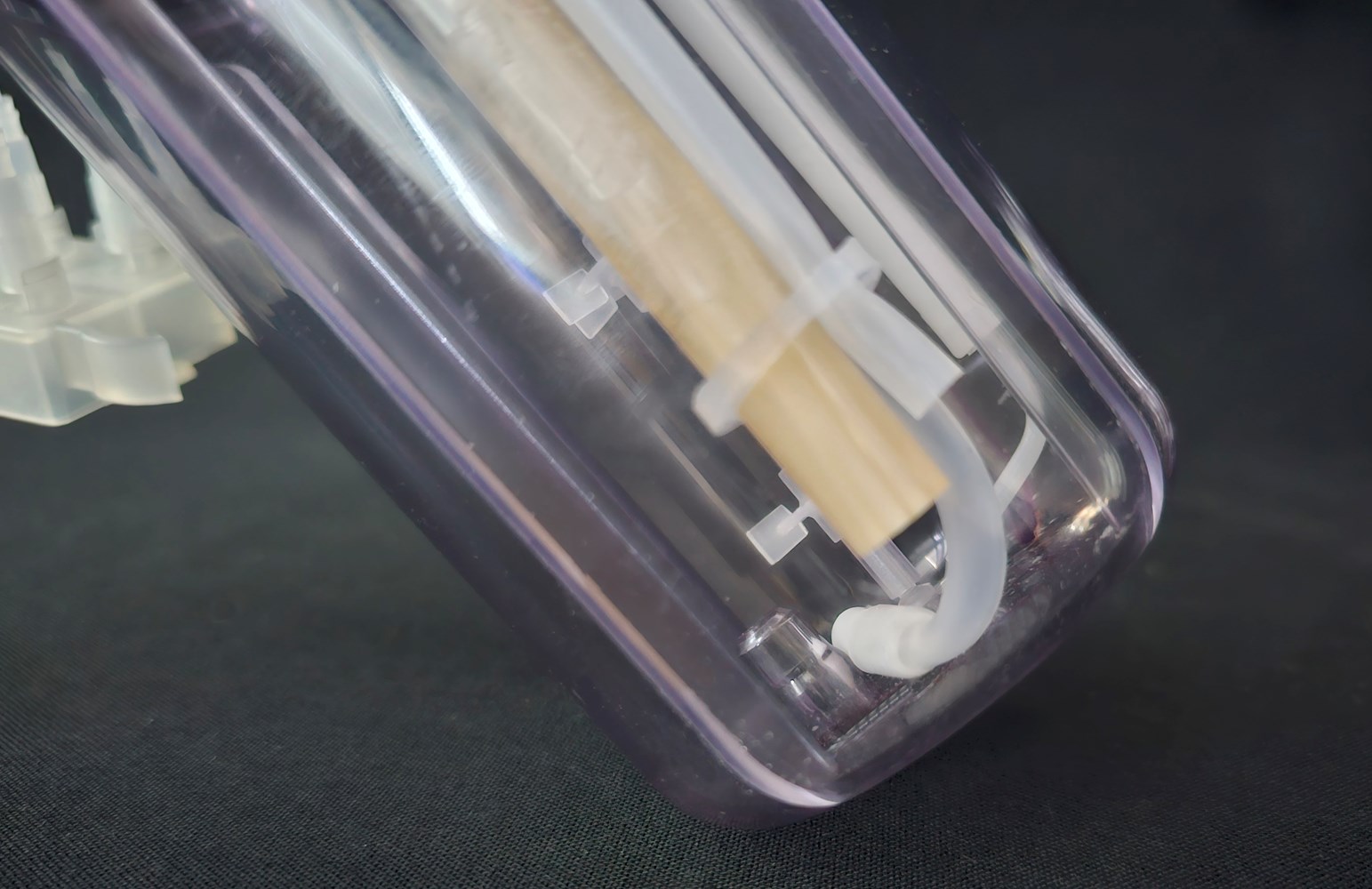

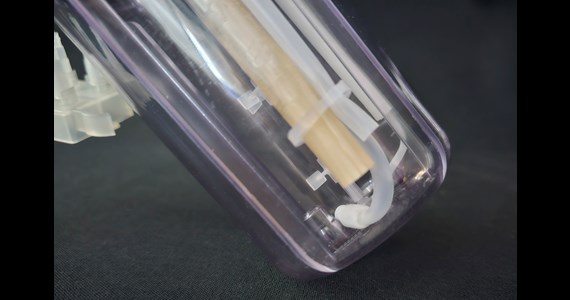

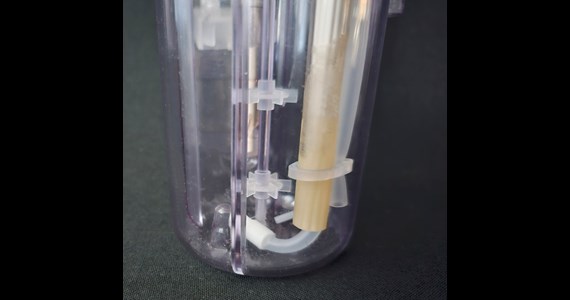

Notice the hose connected to the glass frit is bended during installation and the frit is resting on the bottom. The built-in one-hole sparger works great for batch processes and reaches in the area of 50 mio/cells/ml. Higher cell density requires optimized gassing now found in the CellRetention-250-kit-Modular.
