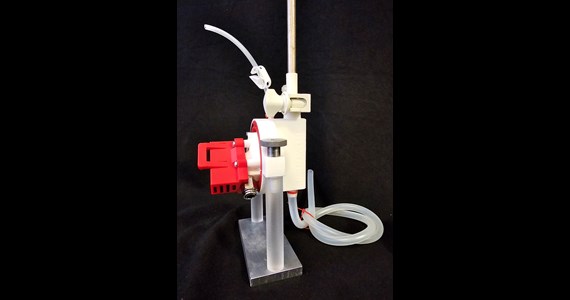

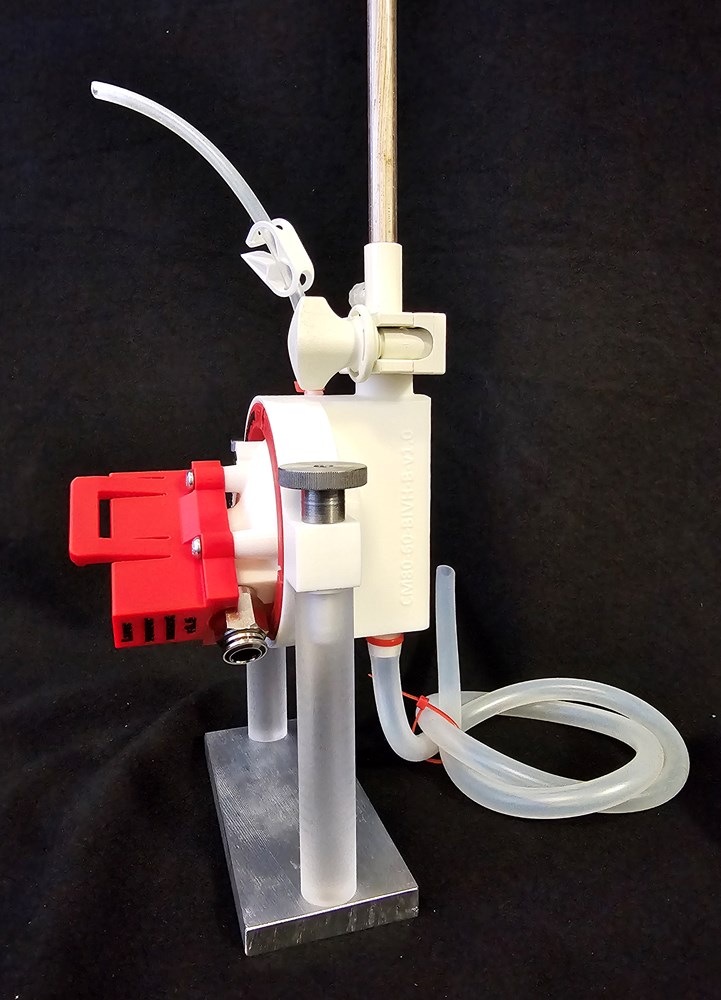

Clio™ CM80 and CM100 customized through standard accessory
Clio stand-alone is our standard fluid conveying OneWay-Single-Use-Pump (O-SUP) build for super accurate operation by the advanced Clotho Drive Units. Clio is a true metering pump = Positive Displacement (PD) pump = mass-flow measured accurately and constantly and as such need no calibration or mass-flow sensor.
-
CM80 basic / no OUT/IN pn is 34-2210-XX – the XX determine OUT/IN options according to the table below.
-
CM100 basic / no OUT/IN pn is 34-2220-XX – the XX determine OUT/IN options according to the table below.
|
1st X - OUT |
OUT – any of below |
2nd X - IN |
IN – any of below |
|
A |
TC ½” ID 9.5 |
F |
TC ½” ID 9.5 |
|
B |
TC ¾” ID15.7 |
G |
TC ¾” ID15.7 |
|
C |
Barb 4.8 |
H |
Barb 4.8 |
|
D |
Barb 6.0 |
I |
Barb 6.0 sample |
|
E |
Barb 8.0 |
J |
Barb 8.0 |

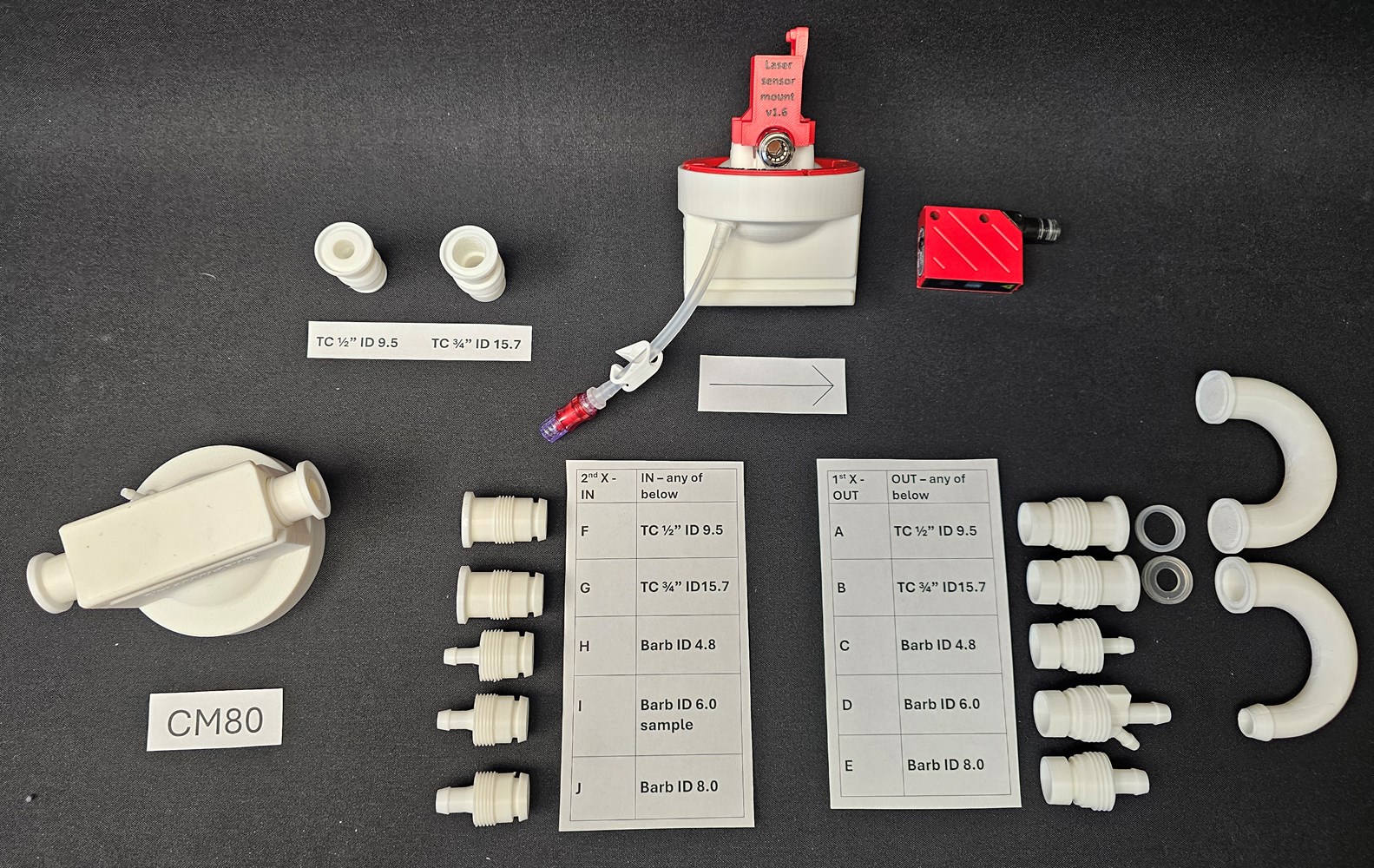

Through the chart above and photo below with all the individual parts, it should be possible to describe the desired customized version accurately all by your own. Hoses, swabable valves, hose clamps according to selected OUT/IN.
OUT / IN part can be mixed according to needs respecting OUT and IN sides – which cannot be mixed. Click on the photo to expand and see numbering details. The CM80 and CM100 bodies are equipped with a trapped gas release barb, a hose, a hose clamp and swabable valve. When TC is chosen the TC is delivered open but dual bag sealed. All parts E-beam irradiated - not designed to be autoclaved.

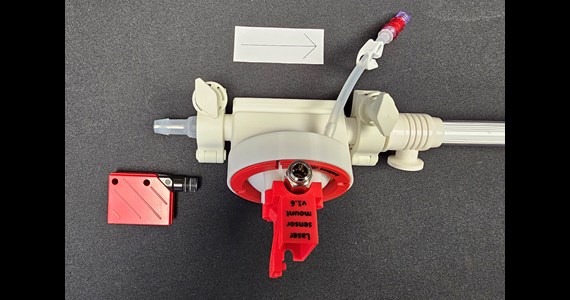

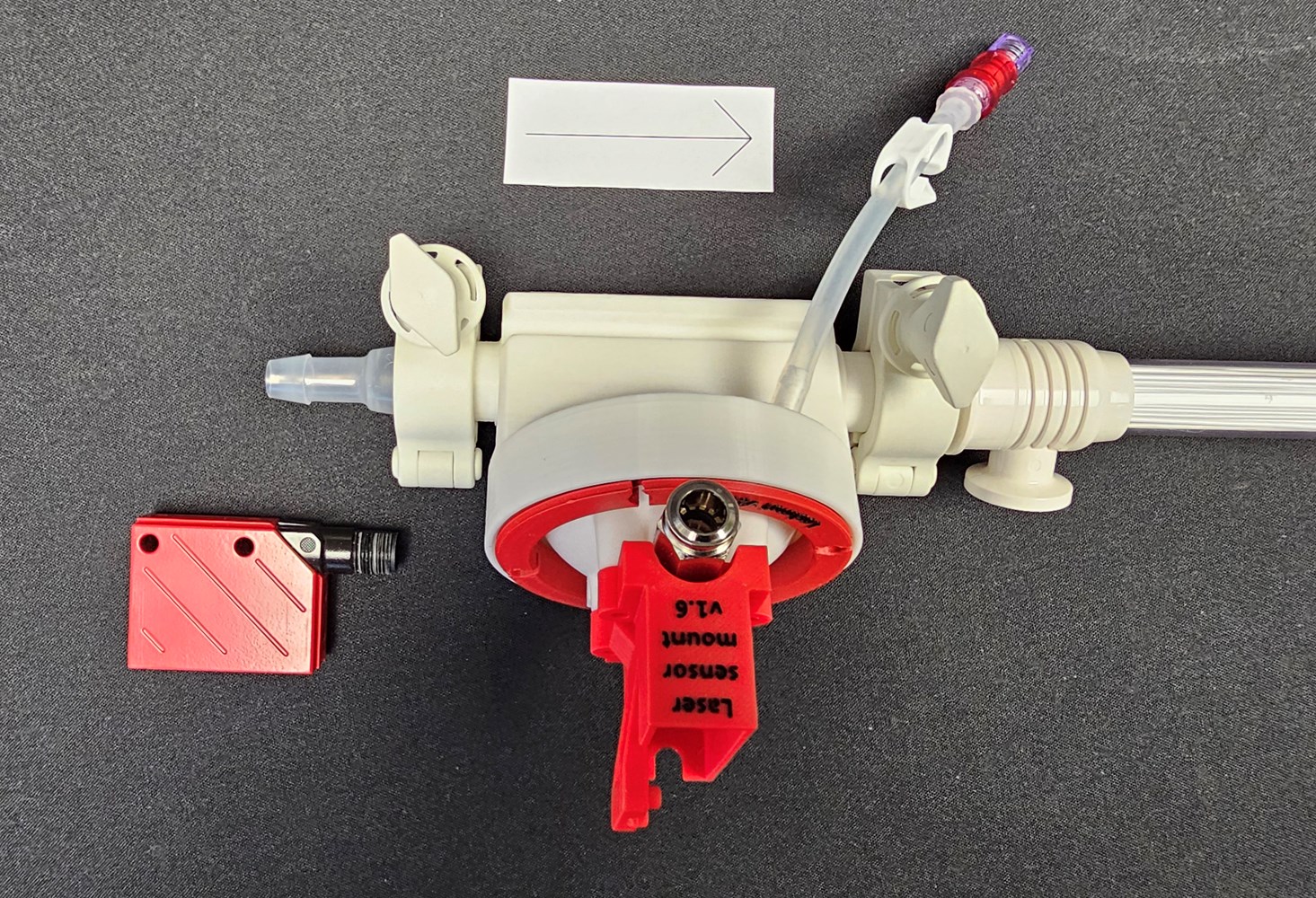

The red LASER sensor (part of Clotho) is connected via a 1.5 meter cable from the Clotho Drive Unit to Clio. The Clotho Drive Unit measure drive gas pressure and diaphragm position.
User features:
- Clio handle fluids = liquids and / or gases or any mix of liquid/gas
- Clio is a true metering pump = Positive Displacement (PD) pump = accurate mass-flow measuring at any time
- Clio O-SUP do NOT need any mass-flow sensor measuring the mass-flow coupled to Clotho Drive Unit
- Clio easily sucks from low arranged containers
- Clio is a low shear force design which do not damage mammalian cells
- Clio pump do NOT need calibration like peristaltic pumps
- Clio pump do NOT loose nano size silicone particles to the fluid like peristaltic pumps
Physical features:
- No expensive housing materials for traditional steam cleaning requirements
- No mechanical rotating parts such as electrical motor, coupling, rollers or gearing
- Passive silicone valves
- All single-use medical grade plastic parts supplied irradiated – contamination not possible
- All pumps offer infinite turn-down, turn-up scale better than 1:5.000
Clio Single-Use-Pump chamber are manufactured from medical grade Nylon. The diaphragm is manufactured from medical grade silicone. The two valves are manufactured from medical grade silicone. Platinum cured silicone hose for trapped gas release. Delivered dual bag packed and E-beam irradiated.
