Servo motor adapters for MST and HPD
Agitation to be divided between two mechanically different methods of rotational transfer:
- Bottom drive - either mechanical or magnetic
- Head-Place-Drive - either mechanical or magnetic
PerfuseCell deal with:
- Bottom drive - Magnetic-Bottom-Drive (MBD) connected to Magnetic-Stirrer-Table (MST)
- Head-Place-Drive (HPD) - mechanical via OD8 mm SUB axle and a coupling
Any of A or B use the same servo motor adapters - of which a few examples are shown below.
Details:
- Check more MST info on this page - MST drive system
- Check more HPD info on this page - HPD drive systems
The most widely used adapter concepts for servo motors was introduced by B.Braun, Melsungen in the 1980ties. This adapter design help to standardize and facilitates also various equipment supplied by a huge supplier from Göttingen.

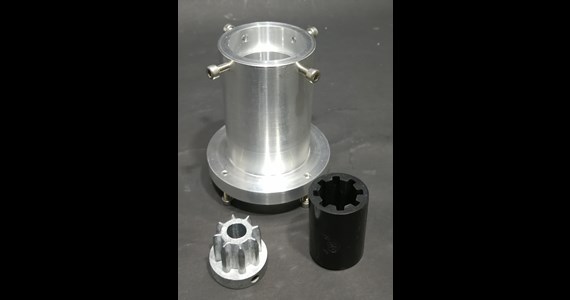

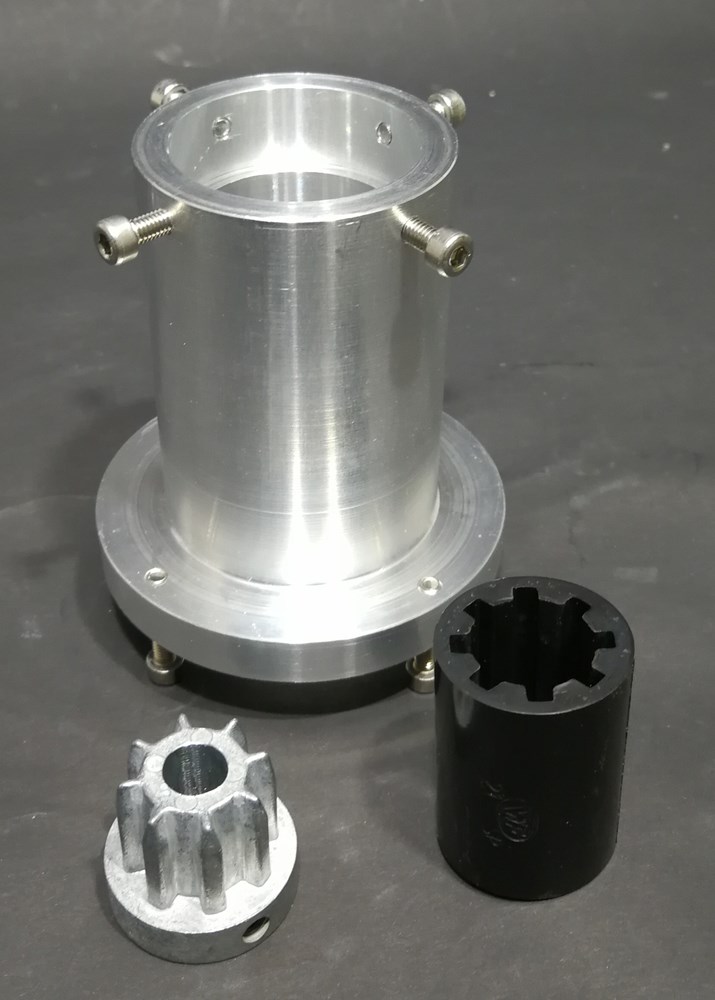

3 different servo motor adapters which all fit the ID39-B adapter concept. Just a few of which PerfuseCell can offer.

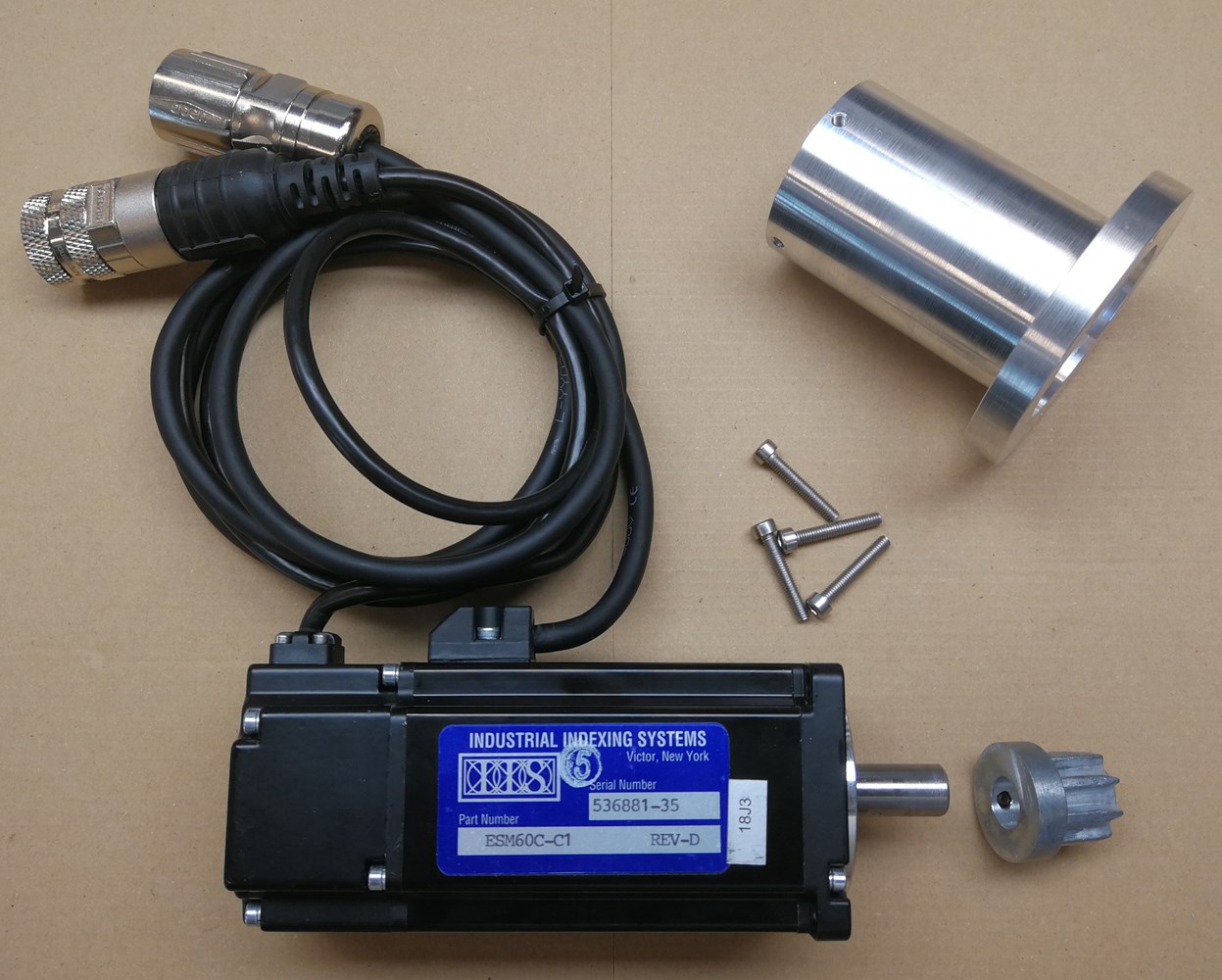

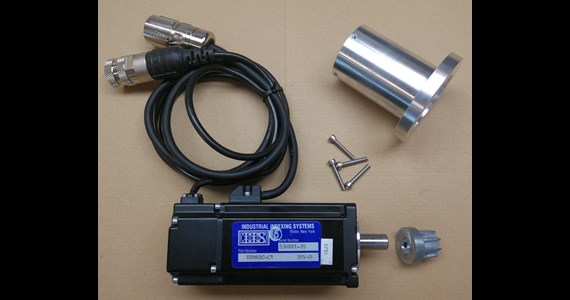

IIS ESM 60C B AC motor

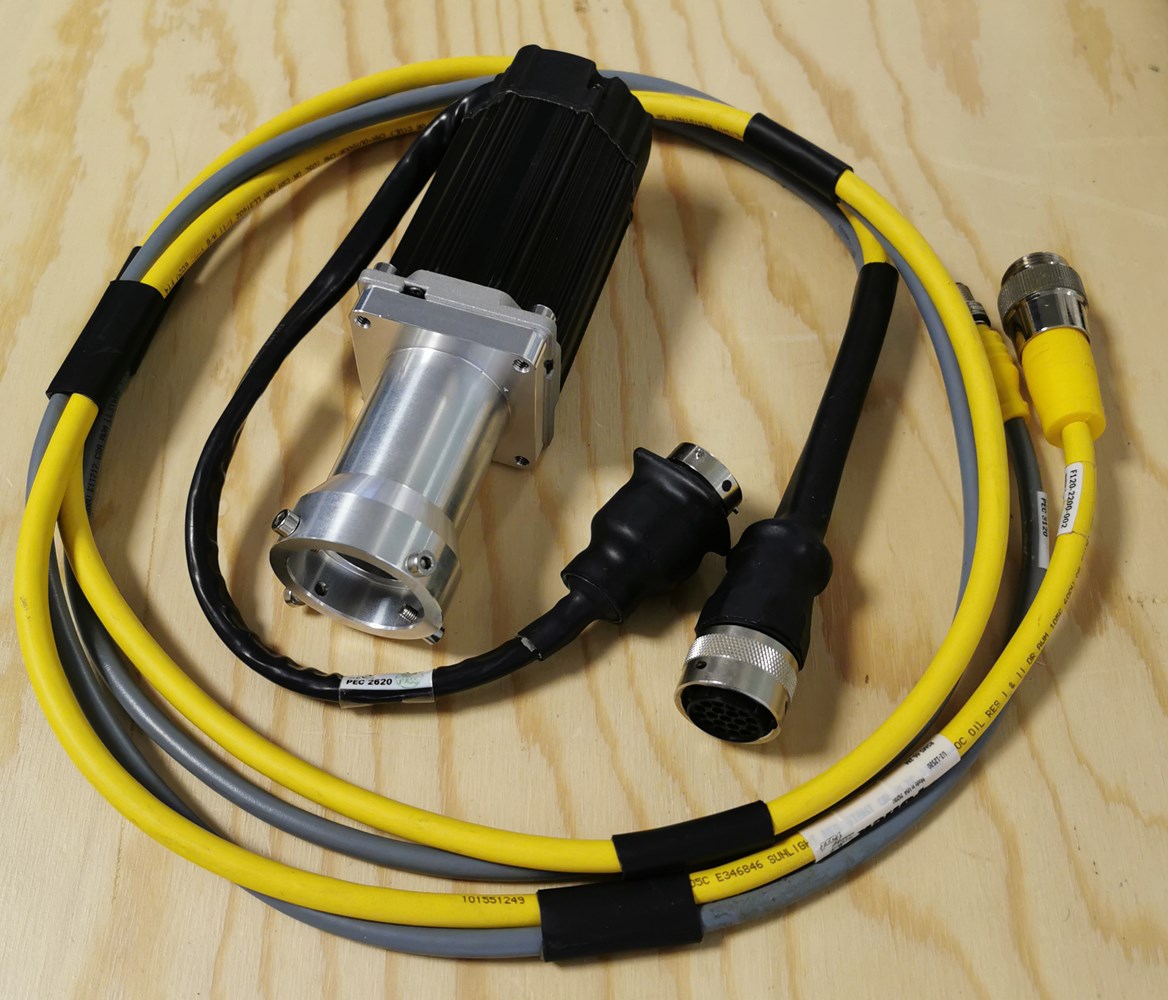

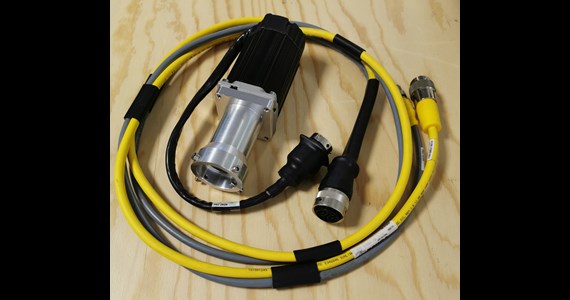

Teknic for G3 with cable

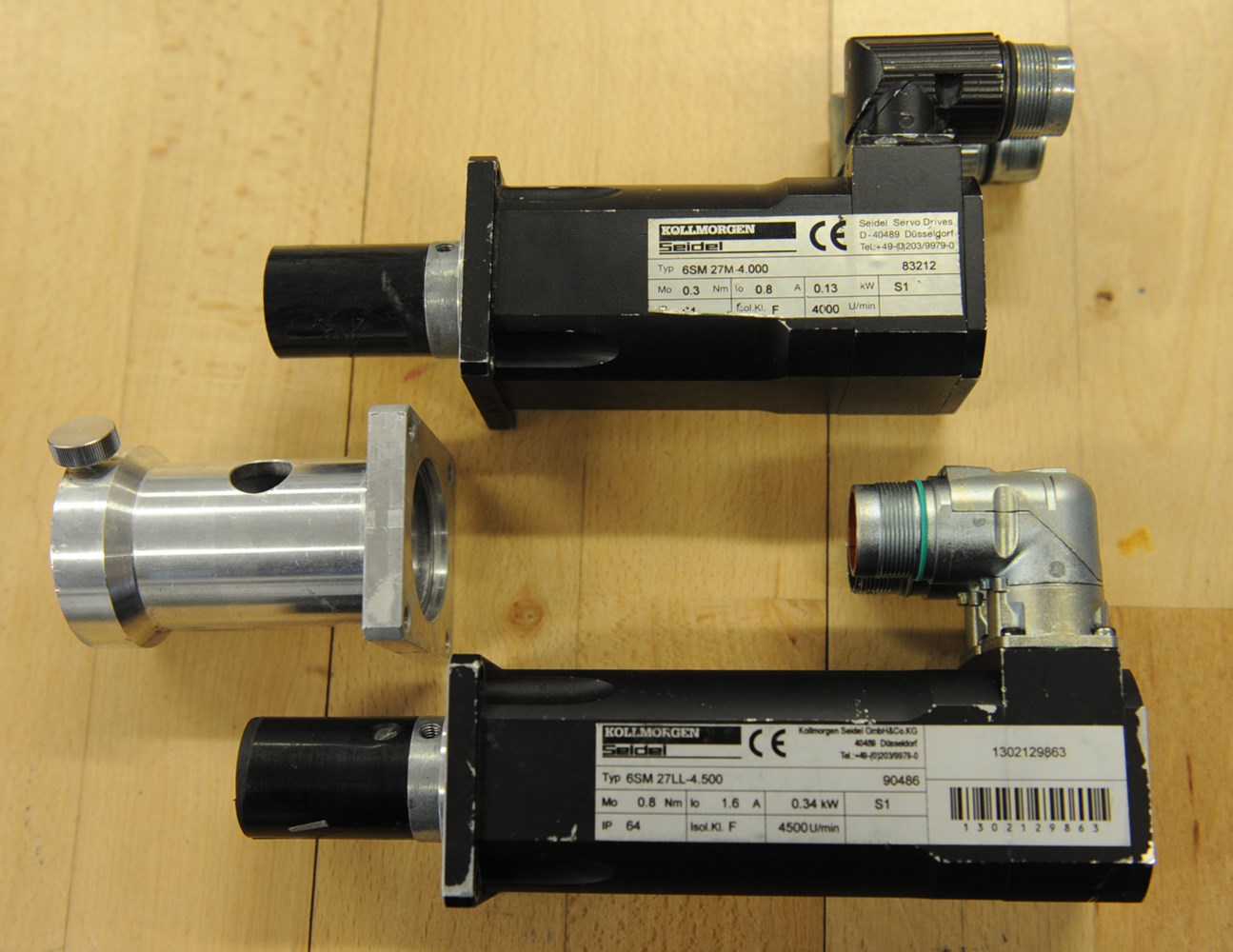

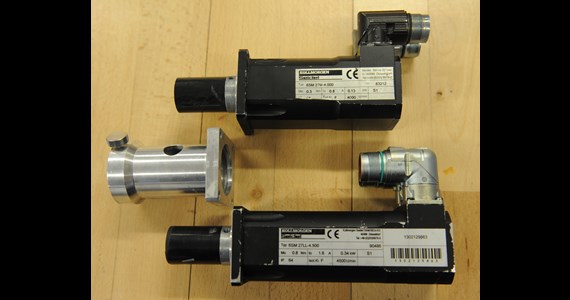

Kollmorgen 6SM 27M + 6SM 27LL + PG21 coupling

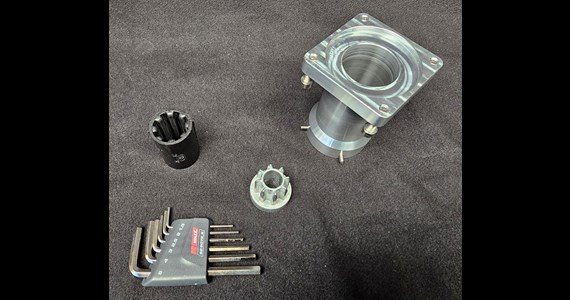

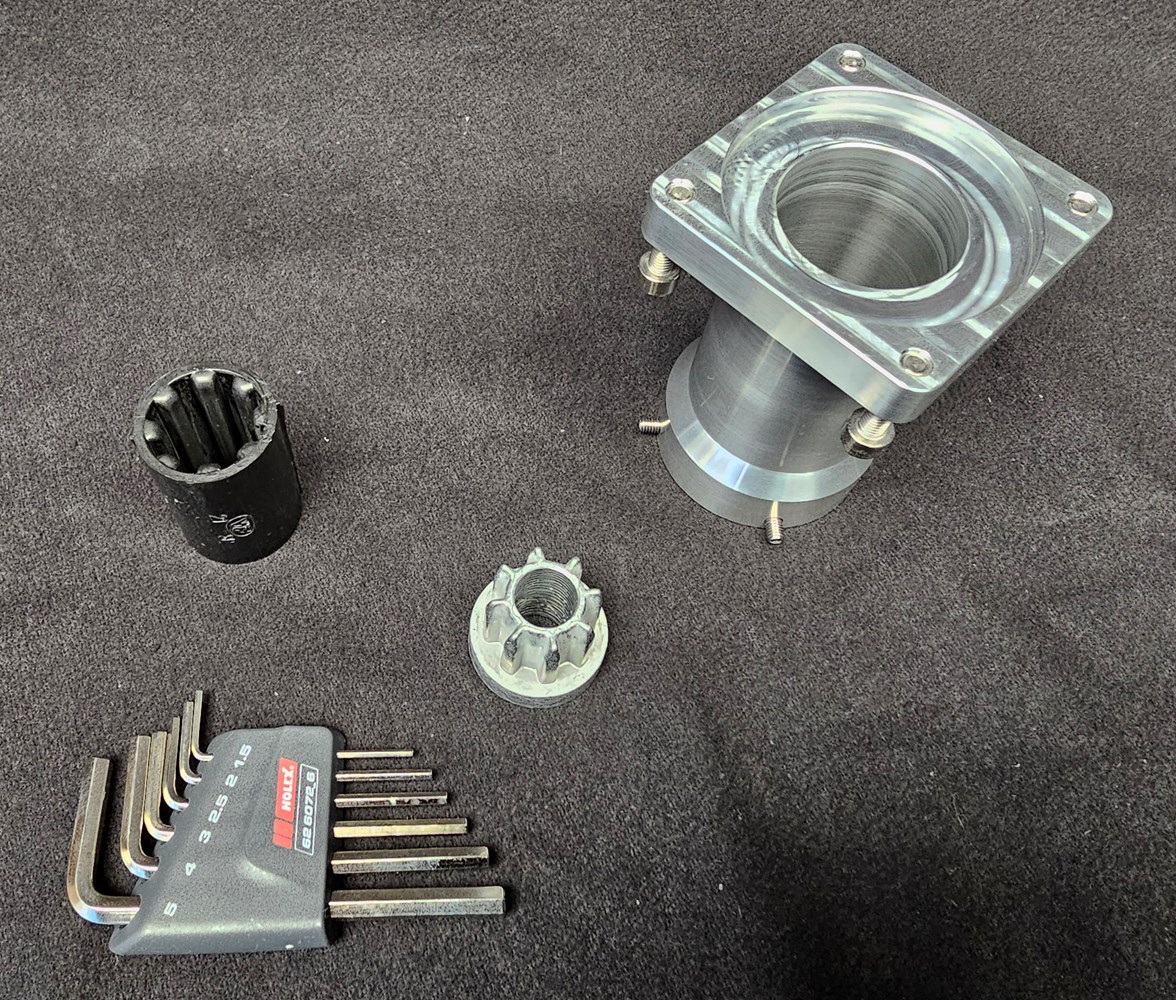

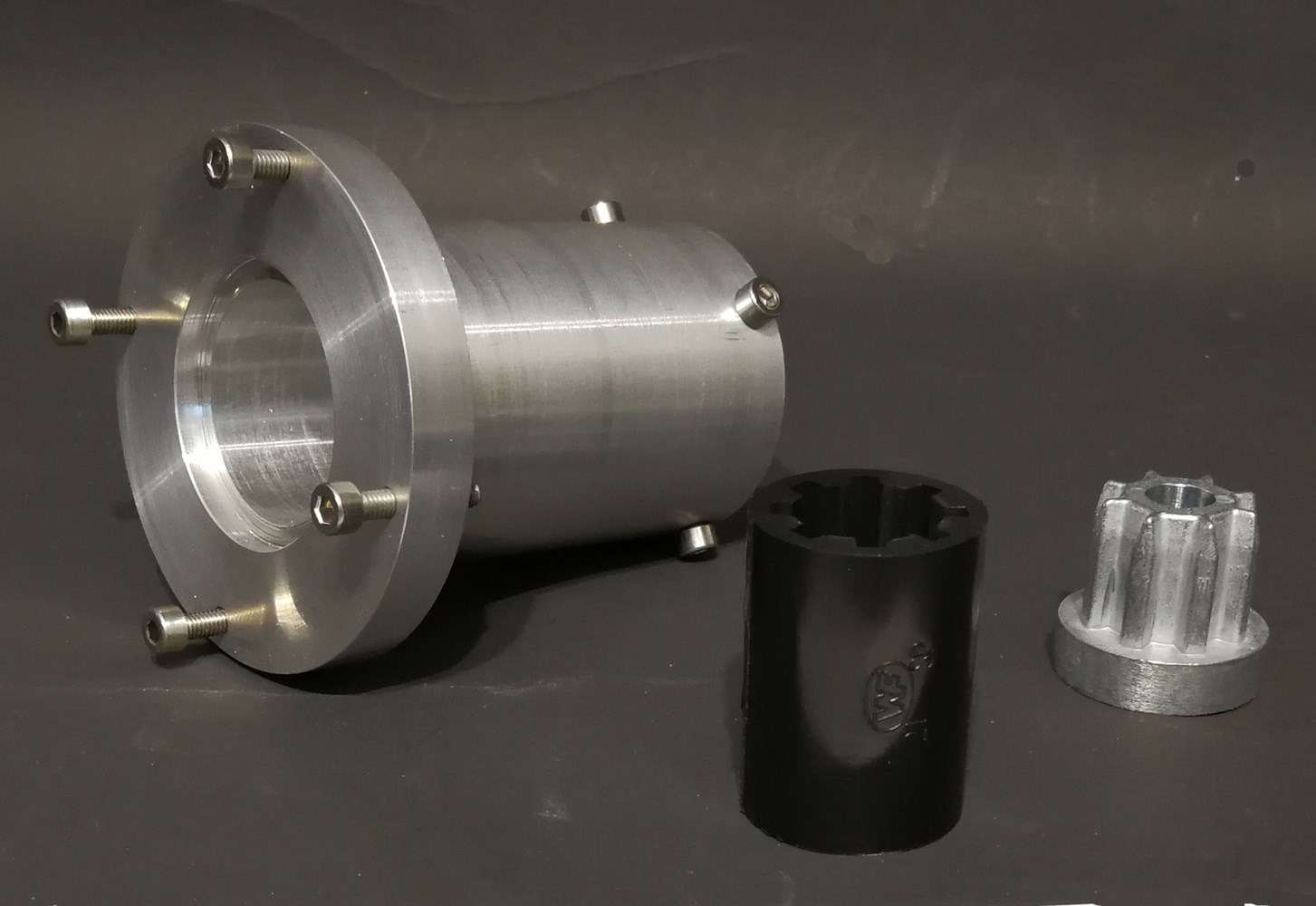

3 different examples of servo motor adapter kits for the ID39-B concept. The list is endless though deeply dependent on the Process-Control-System (PCS) in use. Check out here the “problems” we deal with - https://cercell.com/bioreactor-support/drive-system-details/servo-motors
