Clio™ variants through accessory
Clio is a stand-alone fluid conveying OneWay-Single-Use-Pump (O-SUP) build for super accurate operation by the advanced Clotho or Lachesis Drive Units.
Clio is a true metering pump = Positive Displacement (PD) pump = mass-flow measured accurately and constantly and as such need no calibration.
CM80 basic / no inlet or outlet pn is 34-2110 (xx) – the following two XX determine OUT and IN options according to the table. Hoses, swabable valve, hose clamps according to selected OUT/IN.
|
1st X - OUT |
OUT – any of below |
2nd X - IN |
IN – any of below |
|
A |
TC ½” ID 9.5 |
F |
TC ½” ID 9.5 |
|
B |
TC ¾” ID15.7 |
G |
TC ¾” ID15.7 |
|
C |
Barb 4.8 |
H |
Barb 4.8 |
|
D |
Barb 6.0 |
I |
Barb 6.0 sample |
|
E |
Barb 8.0 |
J |
Barb 8.0 |

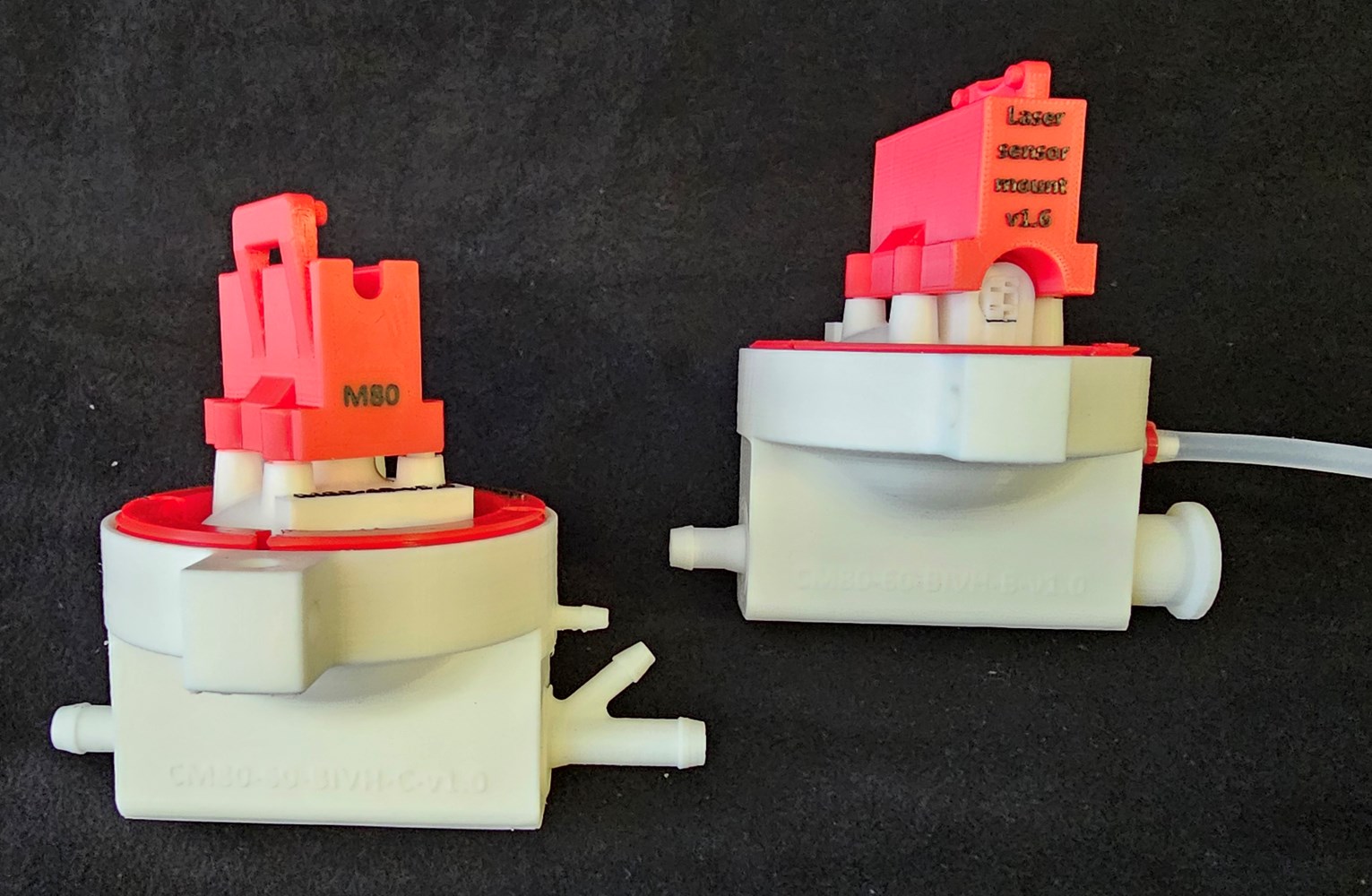

Through the chart and photo, it should be possible to describe the desired version.

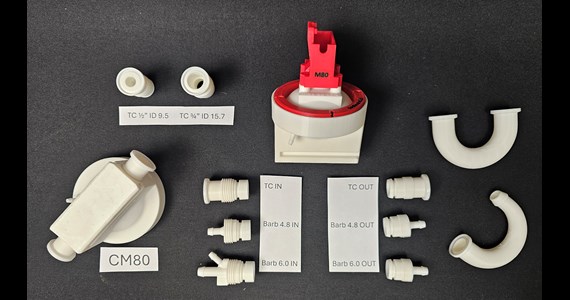

2026 FEB Clio CM80 part
Parts can be mixed according to needs respecting OUT and IN sides – cannot be mixed. Click on the photo to expand.
The red LASER sensor (part of Clotho) is connected via a 1.5 meter cable from the Clotho Drive Unit to Clio. The Clotho Drive Unit measure drive gas pressure and diaphragm position. No electrical motor or servo motor drive for Clio is required.
User features:
- Clio handle fluids = liquids and / or gases or any mix of liquid/gas
- Clio is a true metering pump = Positive Displacement (PD) pump = accurate mass-flow measuring at any time
- Clio O-SUP do NOT need any mass-flow sensor measuring the mass-flow
- Clio easily sucks from low arranged containers
- Clio is a low shear force design which do not damage mammalian cells
- Clio pump do NOT need calibration like peristaltic pumps
- Clio pump do NOT loose nano size silicone particles to the fluid like peristaltic pumps
Physical features:
- No expensive housing materials for traditional steam cleaning requirements
- No mechanical rotating parts such as electrical motor, coupling, rollers or gearing
- Passive silicone valves
- All single-use medical grade plastic parts supplied irradiated – contamination not possible
- All pumps offer infinite turn-down, turn-up scale better than 1:5.000
Clio Single-Use-Pump chamber are manufactured from medical grade Nylon. The diaphragm is manufactured from medical grade silicone. The two valves are manufactured from medical grade silicone. Platinum cured silicone for trapped gas release. Delivered dual bag packed and E-beam irradiated.
