Small size P-SUB integrating pump, HFF and sensor’s
World only fully assembled P-SUB for TFF method offer:
- HFF (Hollow-Fibre-Filter) for fouling free process with innovative diaphragm pump
- 4 - 2 liter Working Volume fully pre-assembled P-SUB
- Circulation of broth by Clio CM80 diaphragm One-way-Single-Use-Pump (O-SUP)

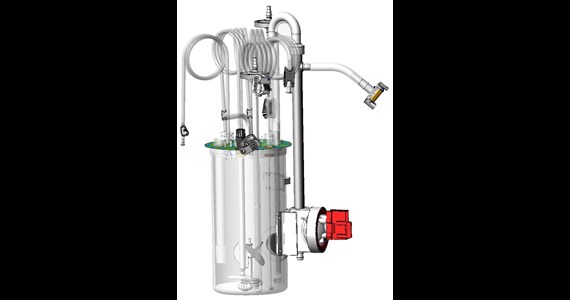

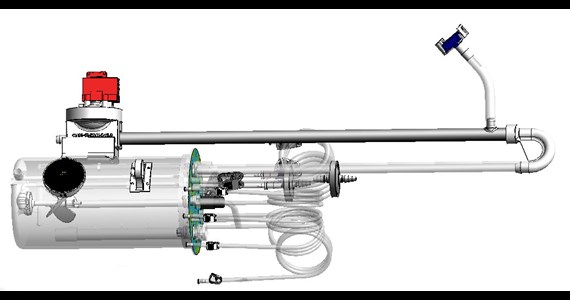

100 % pre-assembled and all single-use assembly. Packed, pre-sterilized and ready to use Perfusion-Single-Use-Bioreactor. Shown rendered assembly incl Single-Use-Pump CM80 and Hollow-Fiber-Filter in length 300 and 600 mm.
CellMembra-3-MST integrates SUB / O-SUP / HFF / SUS in one package
- 3.2 liter Vessel Volume (VV) with 5 x PC 13.5 ports
- 0.4 – 2 liter Working Volume (WV)
- Integrate OneFerm pH and VisiWell or PolarWell and InCyte patch by Hamilton
- 2 free PG 13.5 port for other sensors
- O-SUP is Clio CM80 fully controlled featuring measured broth volume and velocity by Clotho drive unit
HFF - installed
- SepraPor HFF (Meissner) with 0.2 µm pore, 55 x 1.0 mm straw/lumen, 420 or 850 cm2 area, cartridge integrated directly into SUP, barb permeate, low stress return to SUB

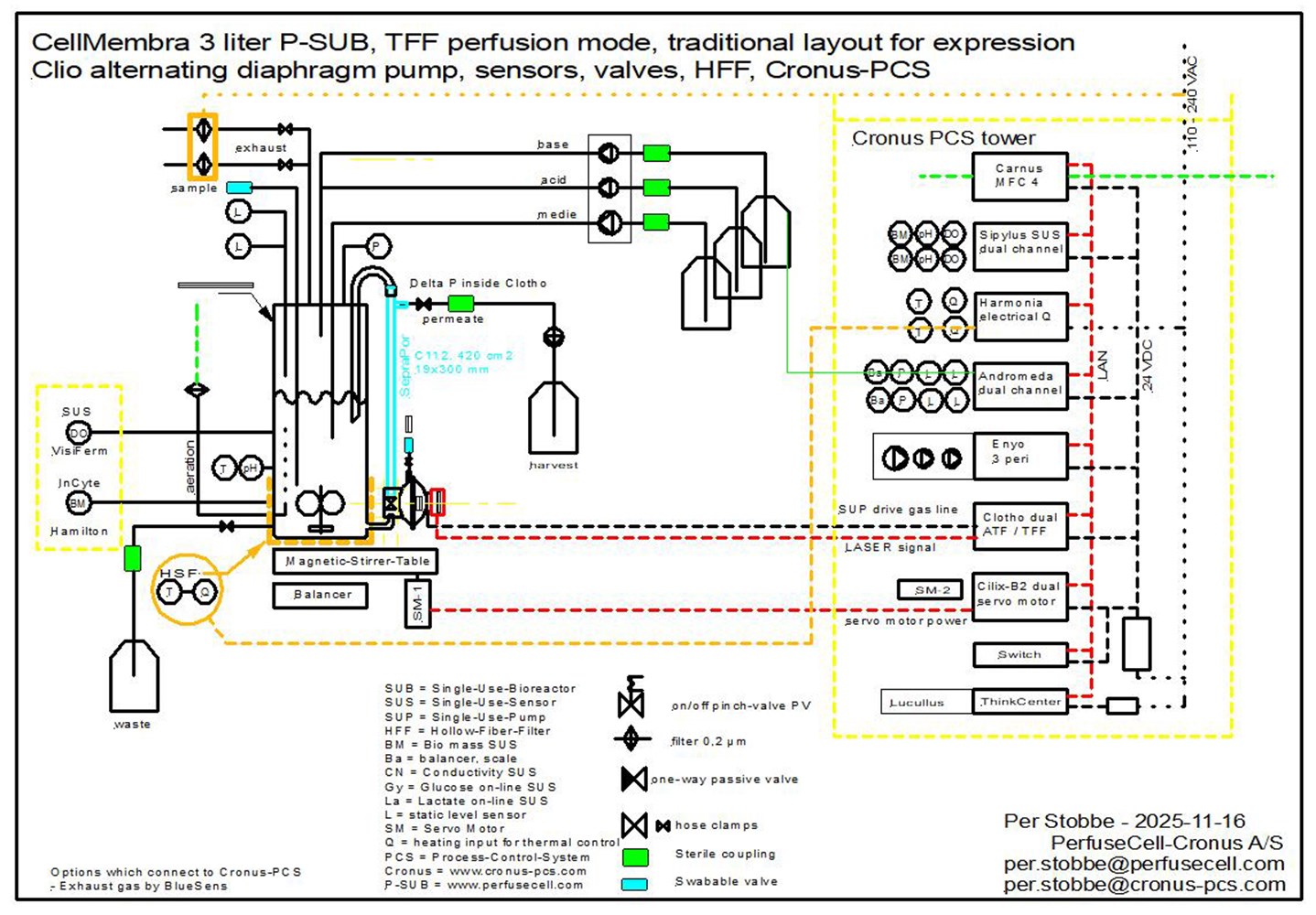

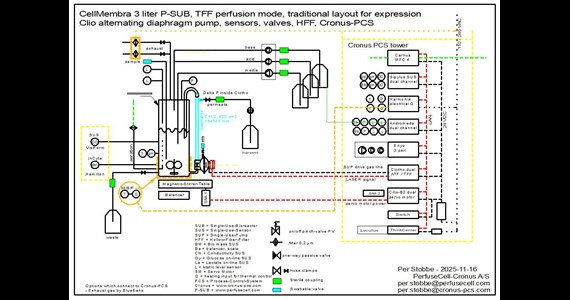

Flow-chart illustrates most important connections between CellMembra and Cronus Tower.
Features for the CellMembra 3 litre P-SUB
- Fully assembled P-SUB packed in dual film bags and precision irradiated - ready to use
- Three baffles of width 10 mm x thickness 4 mm – if you have other requirements – tell us
- Impeller: Kidney impeller, OD 60 mm, 3 blades, 30 degrees clock wise rotation and up flow mounted 50 mm from the bottom – if you have other requirements – tell us
- Pumped volume and velocity measured accurately and fully controlled – no guessing
More information about SepraPor HFF under Support
