Pre-assembled ATF-SUBmerged P-SUB – series 31
P-SUBmerged (Perfusion-Single-Use-Bioreactor) for semi-continuous expression of proteins, anti-bodies by cultivation of mammalian cell lines in perfusion mode. The LASER controlled Thalia diaphragm A-SUP keep the SepraPor HFF clean and only require Clotho, Lachesis to operate. Hamilton VisiWell for VisiFerm DO, OneFerm pH and optional biomass InCyte sensor patch included as needed and space wise possible.
SUBmerged |
Product Name |
Description of CellRetention SUBmerged Perfusion-Single-Use-Bioreactor (P-SUB), MOQ = Minimum Order Quantity |
Part Number |
Unit price |
|
|
CellRetention-250-kit-Modular |
P-SUB-250 SUBmerged kit for upgrading the SUB used in the Modular Process-Control-System. Thalia TM50 united with 110 cm2 SepraPor HFF of 0.2 µm pore, you install the irradiated kit on your own in the hood, MOQ/Package: 4 units |
31-0020 |
1,900 |
|
|
CellRetention-250-Modular |
P-SUB-250 SUBmerged as used in the Modular Process-Control-System, Thalia TM50 united with 110 cm2 SepraPor HFF of 0.2 µm pore, send us your non-irradiated AMBR and we install, pack and irradiate. MOQ/Package: 4 units |
31-0030 |
2,000 |
|
|
CellRetention-300-DASbox |
P-SUB-300 SUBmerged 0.3 BioBLU for Maxon RE30M HPD magnetic, pH OneFerm K8, one free PG13 port, level/foam sensor, Thalia TM50 SUP, 110 cm2 SepraPor, 0.2 µm pore HFF, MOQ/Package: 4 units |
31-0031 |
2,800 |
|
|
CellRetention-500-MST |
P-SUB-500 SUBmerged size OD 82 x 120 mm for MST drive, DO VisiWell, pH OneFerm K8, one free PG13, level/foam sensor, Thalia TM50 united with 110 cm2 SepraPor, 0.2 µm pore HFF, MOQ/Package: 4 units |
31-0050 |
2,800 |
|
|
CellRetention-2-MST |
P-SUB-2 liter size OD 110 x 230 mm for MST drive, DO VisiWell, pH OneFerm K8, InCyte patch, level/foam sensor, Thalia TM80, SepraPor C012-xx1x, 110 cm2, 0.2 µm pore, MOQ/Package: 2 units (drive system and InCyte not included) |
31-0200
|
4,500 |
|

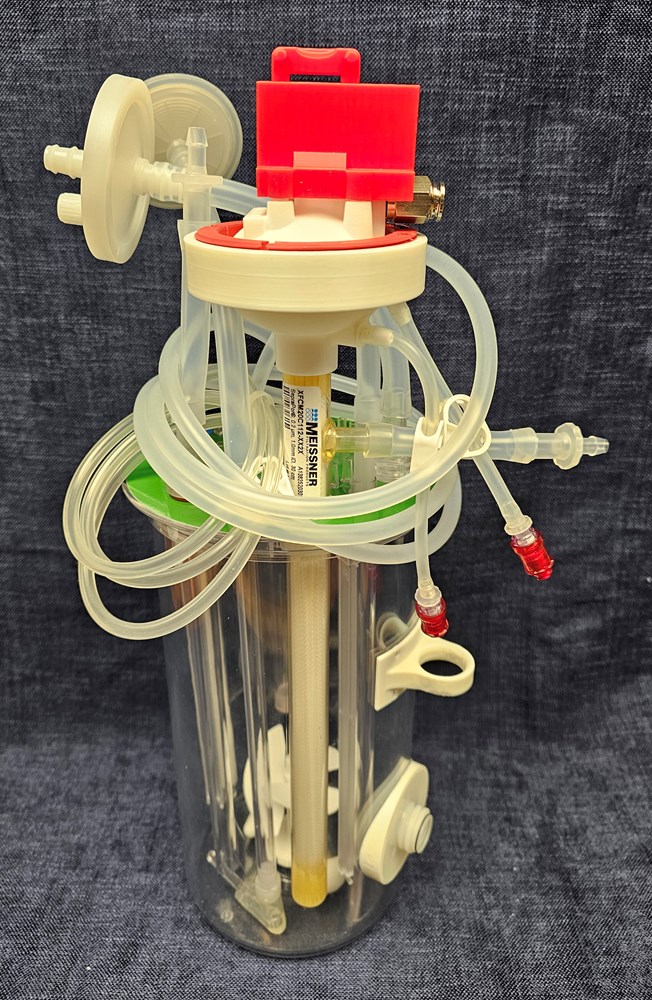

CellRetention-3-MST/HPD |
P-SUB-3 liter SUBmerged size OD 137 x 270 mm, DO VisiWell or PolarWell, pH OneFerm-xx, InCyte patch, level/foam sensor, Thalia TM80, SepraPor C112-xx1x, 420 cm2, 0.2 µm pore, choose MST or HPD, MOQ/Package: 2 unit (drive system, HSF and InCyte not included) |
31-0320xx |
4,800 |
|
|
CellRetention-3-pre-SUJ |
B-SUB-3 liter pre-SUBmerged size OD 137 x 270, DO VisiWell, pH OneFerm-xx, level/foam sensor, 19 mm port for ad_on "CellRetention-3-kit", Single-Use-Jacket, choose MBD or HPD, MOQ/Package: 2 unit (drive system not included) |
31-0330xxx |
3,100 |
|
|
CellRetention-3-pre-RUJ |
B-SUB-3 liter pre-SUBmerged size OD 137 x 270, DO VisiWell, pH OneFerm, level/foam sensor, 19 mm port for ad_on "CellRetention-3-kit", choose MBD or HPD, MOQ/Package: 2 unit (drive system not included) |
31-0335xxx |
2,600 |
|
|

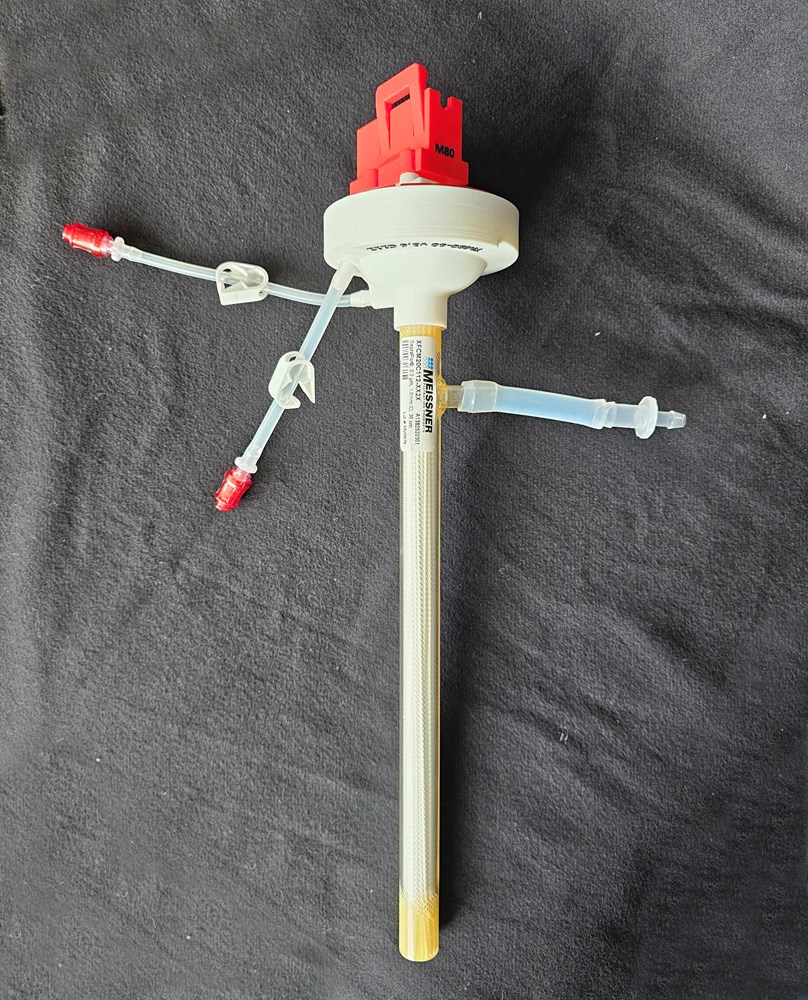

CellRetention-3-kit |
Convert the customized OD137 B-SUB to SUBmerged. The kit includes the Thalia TM80, SepraPor C112-xx1x HFF 420 cm2, 0.2 µm pore, choose Angled or Straight Thalia, MOQ/Package: 2 unit |
31-0021x |
2,800 |
|
|
CellRetention-13-HPD |
P-SUB-13 liter SUBmerged size OD 200 x 450 mm for MST, DO VisiWell, pH OneFerm-xx, InCyte patch, level/foam sensor, Thalia TM100 united with SepraPor 1,500 or TM140/2,300 cm2 area, pore 0.2 µm, 1.0 mm lumen, MOQ/Package: 1 unit |
31-1301xx |
7,500 |
|
|
CellRetention-30-HPD |
P-SUB-30 liter SUBmerged size OD 250 x 650 mm for HPD, DO VisiWell, pH OneFerm-xx, InCyte patch, level/foam sensor, one or two Thalia SUPs with SepraPor HFF, pore 0.2 µm, 1.0 mm lumen, choose 2,300 or 8,400 cm2 area, MOQ/Package: 1 unit |
31-3001xx |
ask us |
Talk to us about further customization
