A kit with 420 cm2 HFF surface area designed to fit the 3 liter VV B-SUB

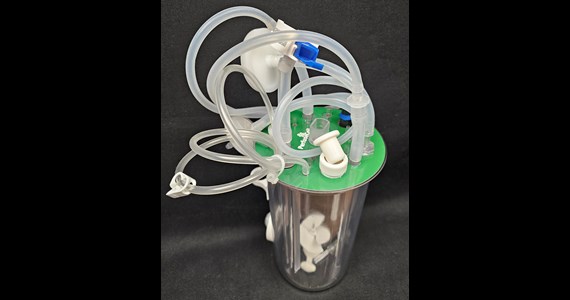

The 3 liter customizable B-SUB (Batch-Single-Use-Bioreactor) is equipped with a ID18 mm port closed with a plug in the head plate and thus able to operate as a batch SUB. When this unique Batch-SUB needs to operate as a P-SUBmerged the "CellRetention-3-kit-x" (pn 33-0021) is easily inserted though the ID19 mm port under the hood by end-user.

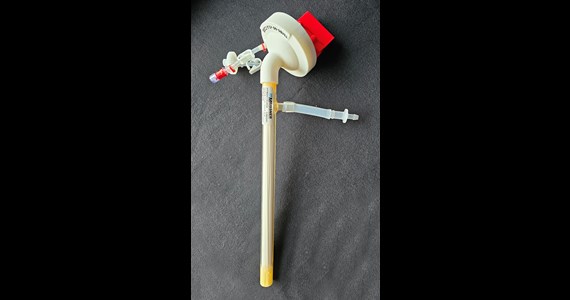

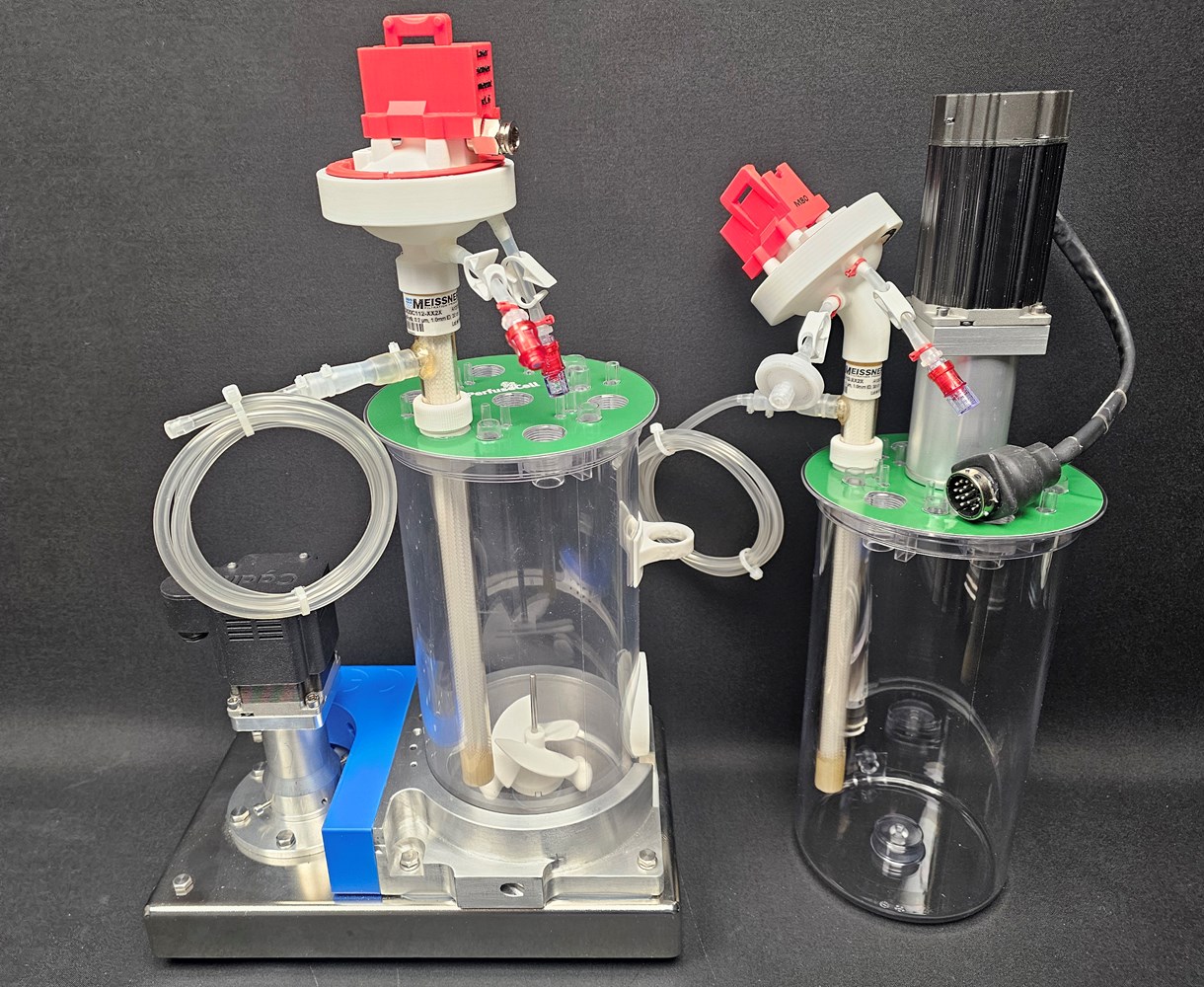

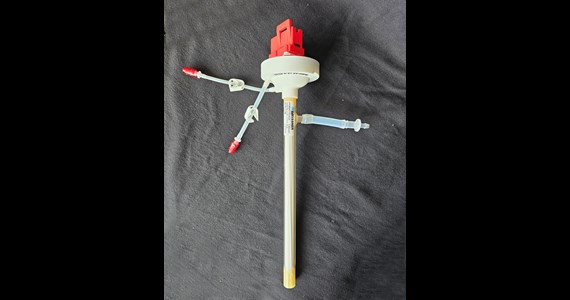

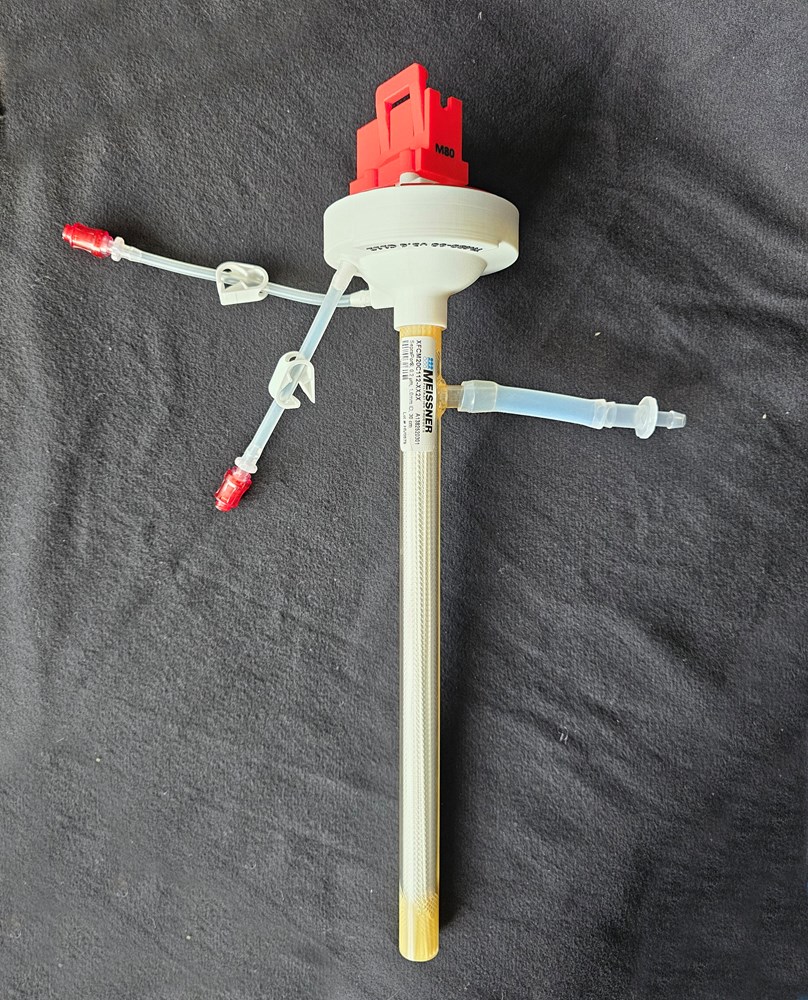

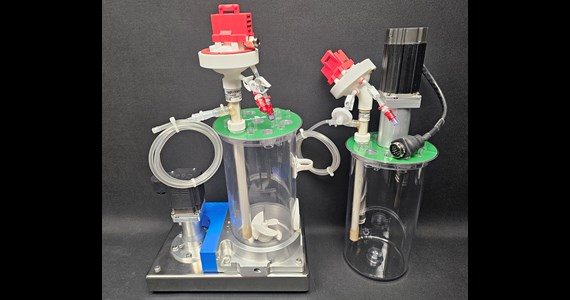

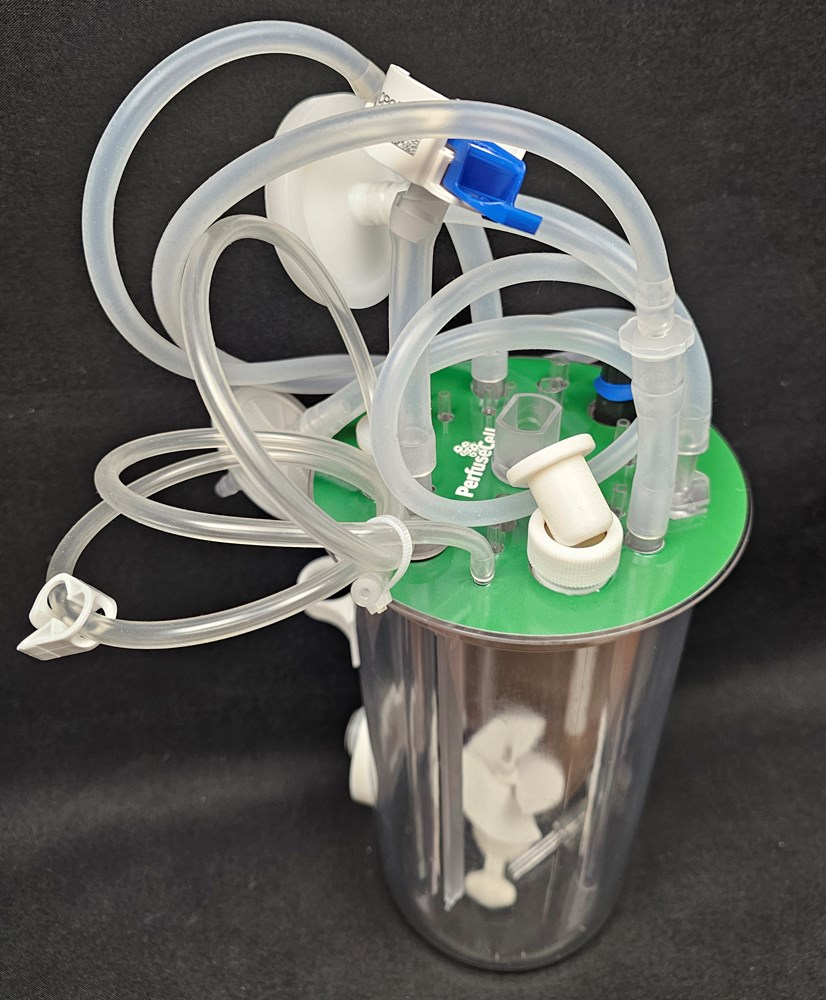

Two different "CellRetention-3-kit-x" delivered bagged and E-beam irradiated ready to be inserted in the 3 liter B-SUB through the ID19 mm port in the hood and thus become CellRetention P-SUBmerged. Both the Straight and the Angled Thalia is a Direct-Fit with the SepraPor C112-xx1x - 0.2 µm pore HFF with 420 cm2 surface. Choose Straight or Angled Thalia as needed from Commerce. Third photo illustrate a demo of the Straight for MST drive and the Angled for HPD drive.

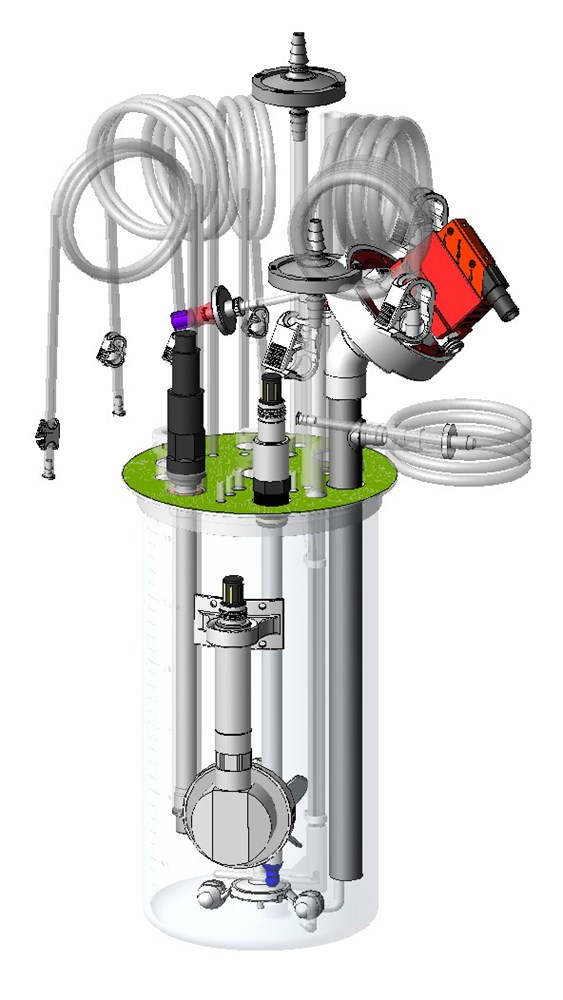

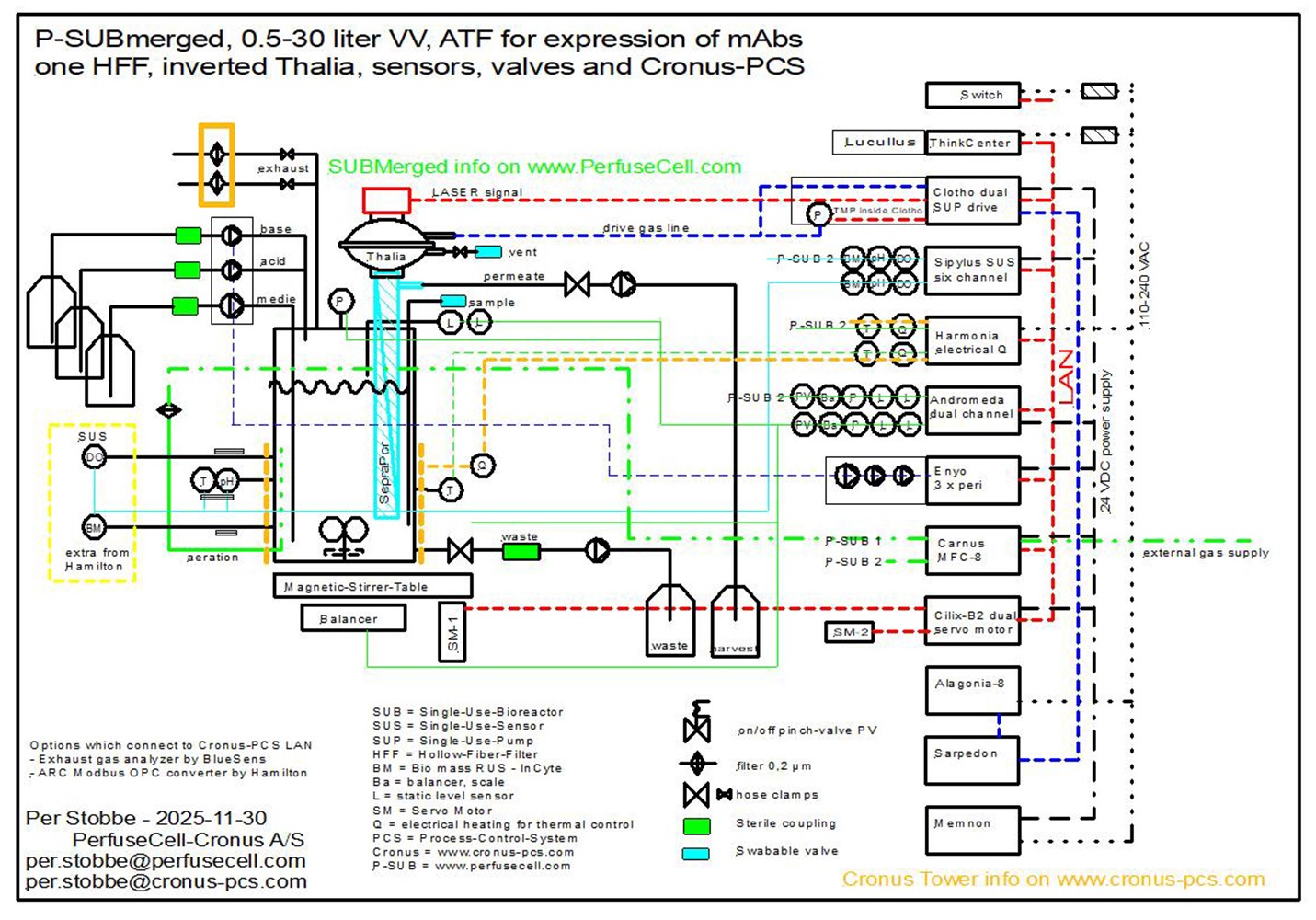

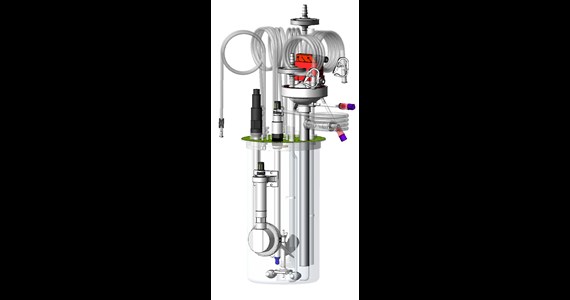

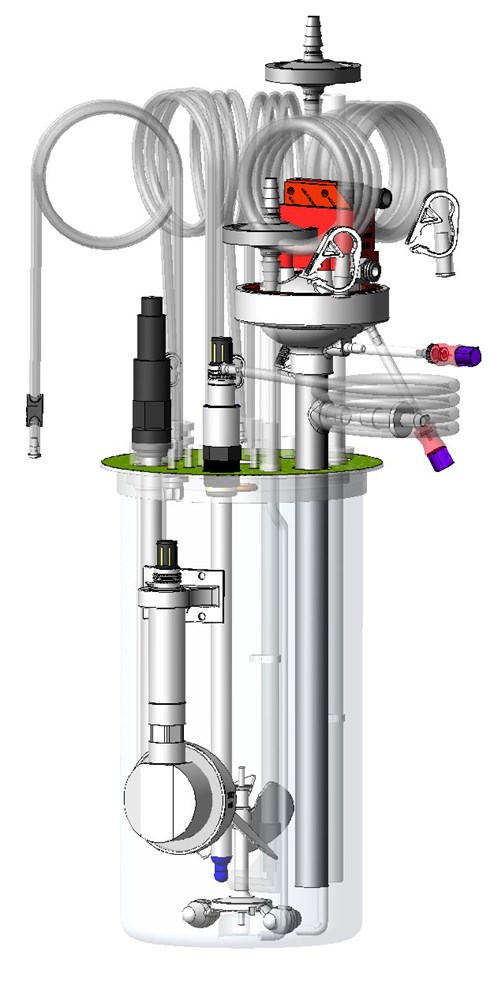

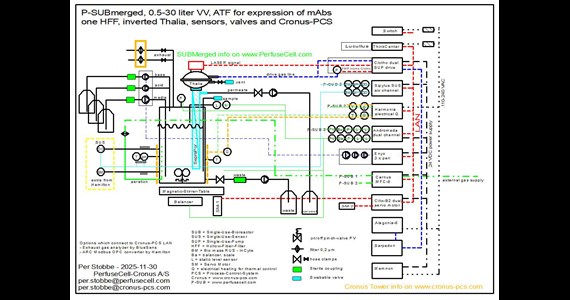

FlowChart connects the P-SUBmerged to the more advanced Cronus-PCS running Lucullus SCADA software. Rendered CAD illustrate the 3 liter SUBmerged with straight Thalia and with angled Thalia. B-SUB part numbers 33-0330xx-xxx or 33-0335xx-xxx
IPR covered by: CellRetention, CerPhragm, SUBmerged.
