0.4 – 10 liter Working Volume with Thalia A-SUP
Traditional ATF-External all pre-assembled 3 - 6 - 13 liter Vessel Volume CellRetention ATF-External. P-SUB vessel size OD 137 or OD 200 mm combined with the Thalia TM80 or the TM100 A-SUP and Hollow-Fiber-Filter with TC clamps and SUS.

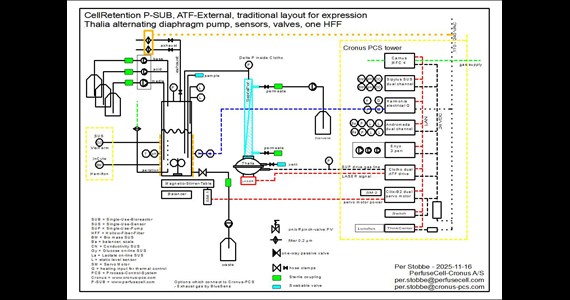

From left: Illustration shows fluid diagram with Magnetic-Bottom-Drive SUB, controlled diaphragm A-SUP and passive HFF. The customizable SUB suction deep-tube connects via a hose to the HFF top and at HFF bottom to the A-SUP. The A-SUP is mounted on a foot, and the red Laser sensor for real-time measuring the position of the diaphragm and hereby full control of velocity and selected exchange volume.

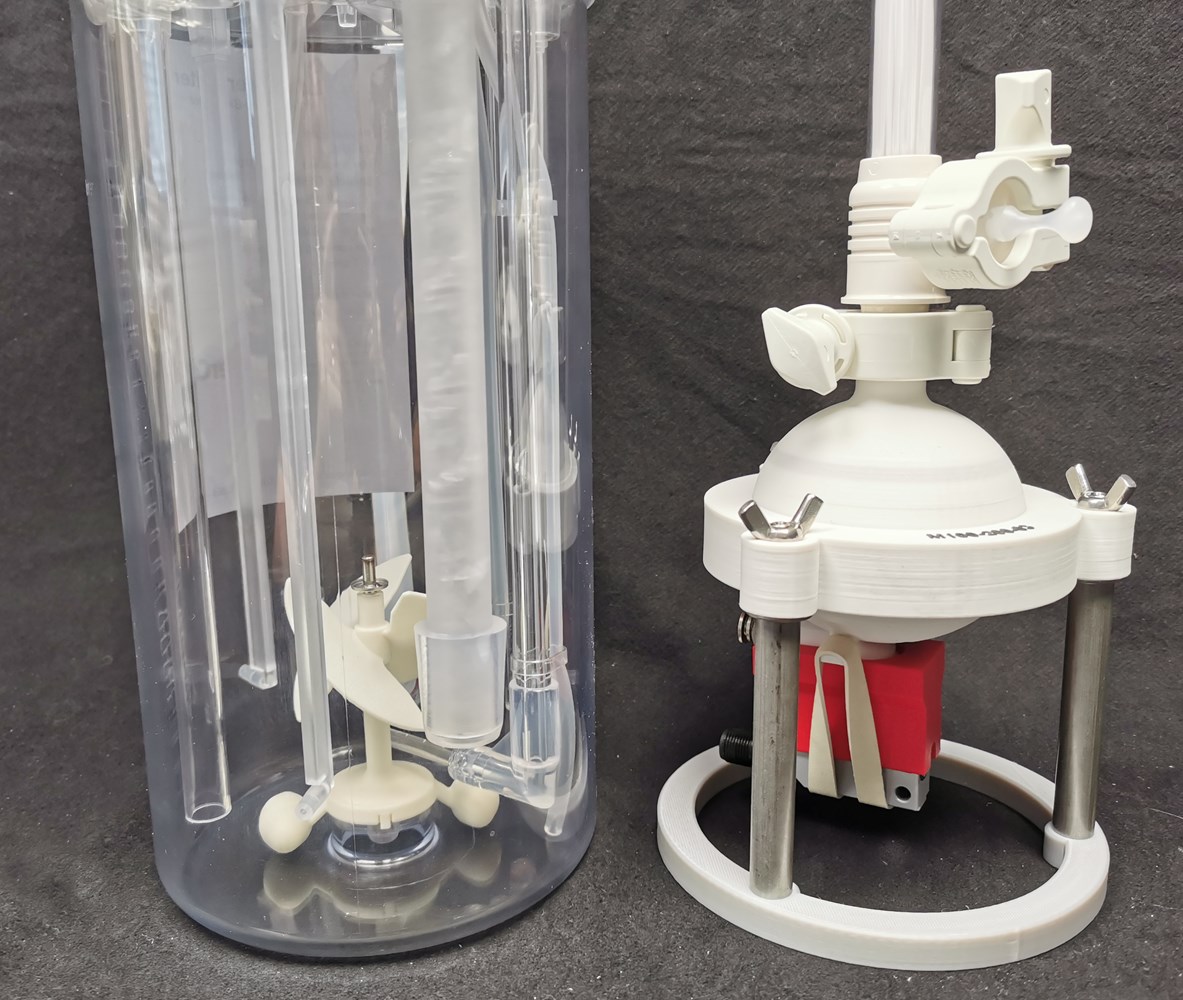

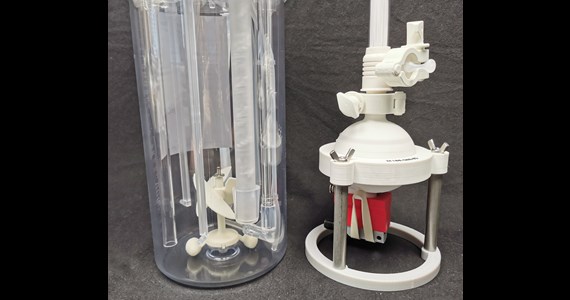

P-SUB 3 liter Ext + Thalia TM80

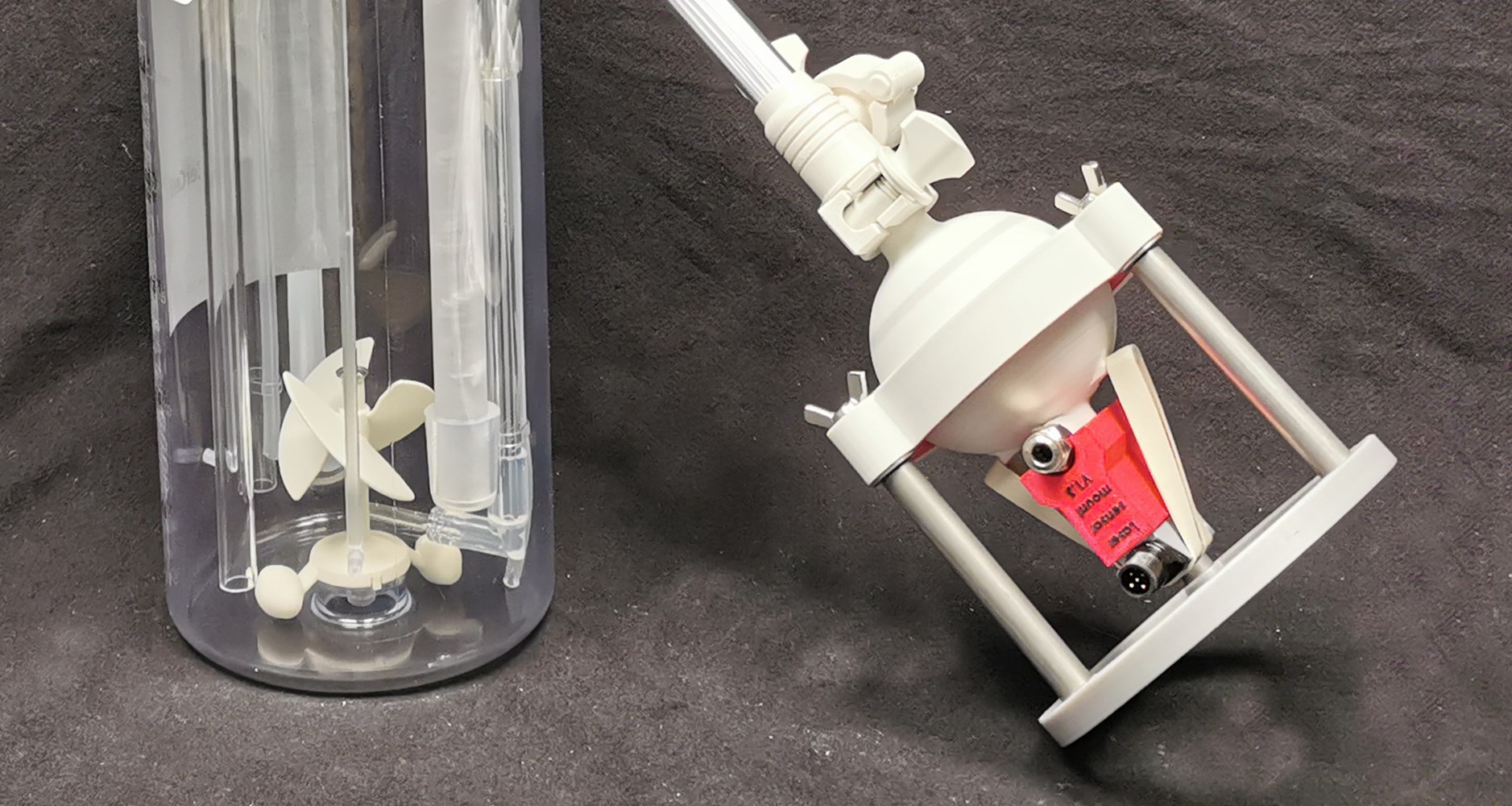

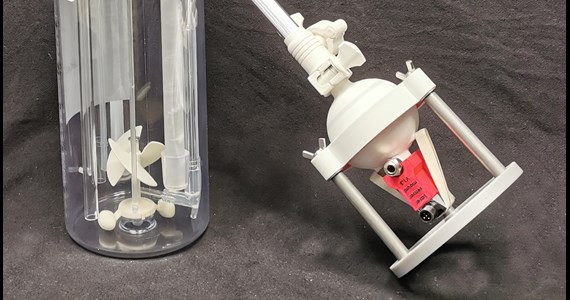

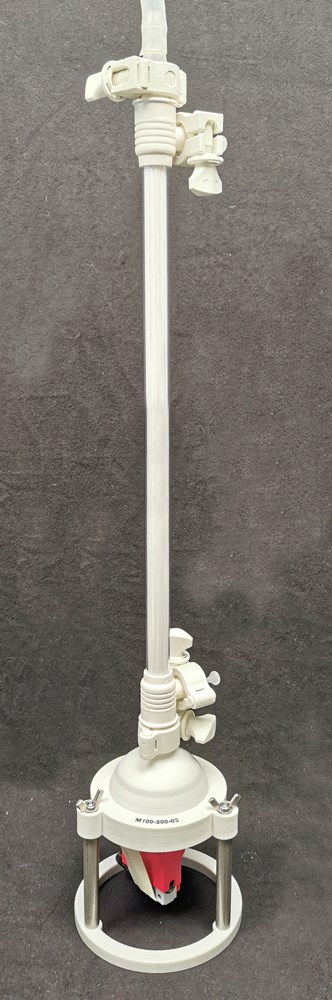

Thalia TM100 for P-SUB-6 Ext

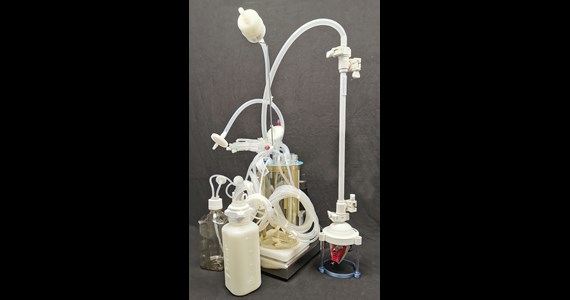

CellRetention-3 ATF Ext incl assembly

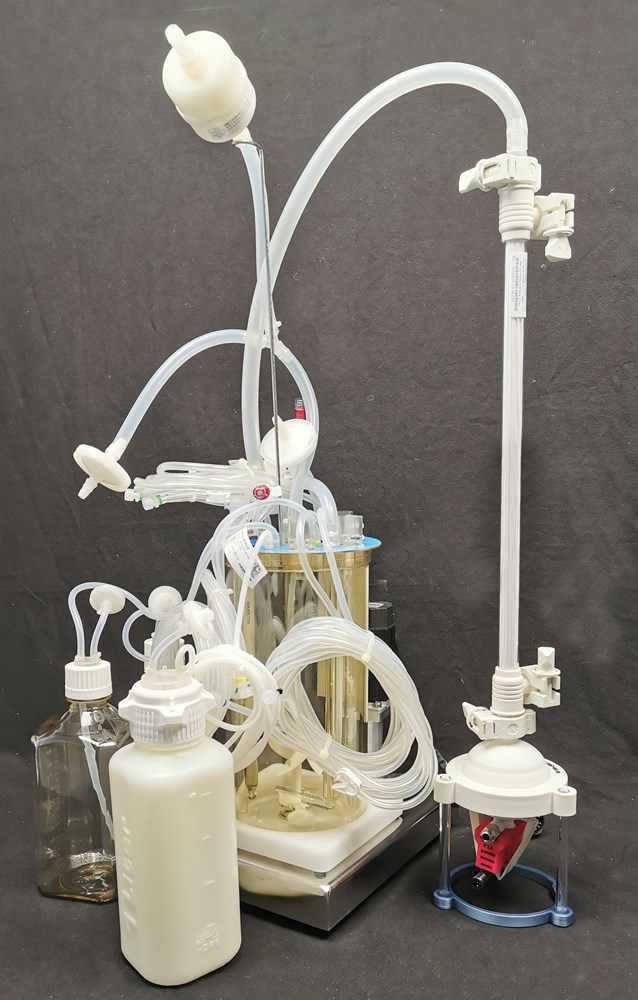

From left: Pre-assembled P-SUB, A-SUP, HFF. The pre-assembled A-SUP/HFF is mounted on a foot. The red Laser sensor for real-time measuring the position of the diaphragm attached to the A-SUP. The Magnetic-Stirrer-Table slightly visible. Right photo – an extensive P-SUB with huge assembly and Thalia-100 A-SUP with ¾” TRI connection to the HFF.
P-SUB - for cultivation (the SUB is sourced from sister company CerCell):
- 100% configurable design for the 13 liter Vessel Volume (VV) - Working Volume (WV) as low as 2-3 liter
- Agitation from bottom by Magnetic-Bottom-Drive (MBD) driven by the Magnetic-Stirrer-Table (MST)
- Agitation from top, Head-Plate-Drive (HPD) and any type and number of impellers as an option
P-SUB - Thermal Control
- Electrical blanket heating - wrap orange silicone blanket around
- Electrical Jacket heating combined with with Magnetic-Bottom-Drive - metal foot also for stability
- Water Re-Usable-Jacket (RUJ) for heating/cooling even combined with Magnetic-Bottom-Drive (MST)
HFF – harvest continuous a cell free permeate
PerfuseCell offer pre-installed a dry stored 0.2 µm pore size HFF. You can though choose from one of your preferred HFF suppliers. We pre-install whichever HFF you want. We can even install two HFF in parallel – each in series with a manual valve for choice of use.
Thalia-100 A-SUP = Alternating-Single-Use-Pump:
- Thalia keep the HFF, Hollow-Fibre-Filter clean, free from fouling issues by programable sequential selectable high fluid velocity flushing out debris securing optimum process time with a single HFF
- The diaphragm Alternating-Single-Use-Pump (A-SUP) exchange back and forth broth from the SUB through the HFF
- The high precision Laser sensor measures in real-time and accurate the position of the diaphragm so broth velocity and exchanged volume calculation can be performed
- Thalia TM80 or TM100 exchange any volume within its spec programmable from 0.1 to +10 m/sec velocity through the HFF
- Thalia exchange equally well gas or liquids or any mix
SUS - Single-Use-Sensor's to choose from:
- CellRetention™ features pre-installed SUS for DO, pH, level/ground as standard
- Also available with InCyte bio-mass SUS mounted vertical at the vessel wall
- SUS combines with most PCS or Cronus-PCS
- Completely eliminate the need for components sterilized in conventional autoclave
A-SUP – Thalia operated by the Clotho Drive Unit:
- CellRetention™ P-SUB works with any PCS
- Drive Unit Clotho designed to control the Thalia Single-Use-Pump and ensure efficient and reproducible operation
- From Clotho programmable broth/retentate velocity and volume through HFF module for harvest and for removal of potential membrane deposits
- Connection to pressurized air and vacuum within your lab - or from unit's like Alagonia and Sarpedon - if you don't have access to pressurized air and vacuum
- Super compact Clotho available in either single or dual channel models
