Pre-assembled ATF Perfusion-SUB's – series 31
P-SUB (Perfusion-Single-Use-Bioreactor) for semi-continuous expression of proteins, anti-bodies by cultivation of mammalian cell lines in perfusion mode. The LASER controlled Thalia diaphragm A-SUP keep the HFF clean. Hamilton VisiWell for VisiFerm DO, OneFerm pH and biomass InCyte ARC sensors (above OD 110 mm) included as needed and space wise possible.
|
|
|
Description of Perfusion-Single-Use-Bioreactor (P-SUB), MOQ = Minimum Order Quantity |
|
Unit price |
|
|

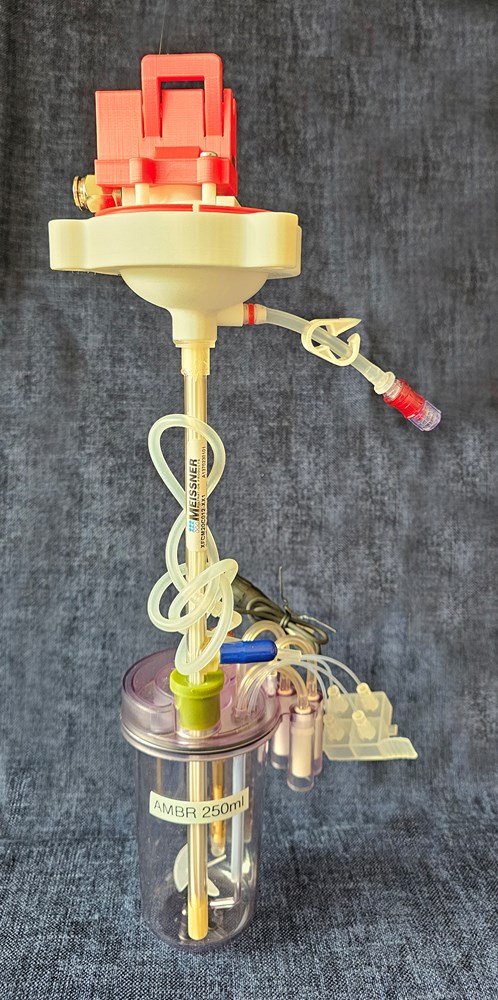

CellRetention-250 Modular |
Designed for the 250 ml SUB used in the Modular Process-Control-System. We offer a Thalia TM80/30 with reduced stroke volume and integrated 200 mm HFF of your choice, the hoses and required deep tube as required. MOQ/Package: 4 units |
31-0020 |
1,800 |
|
|

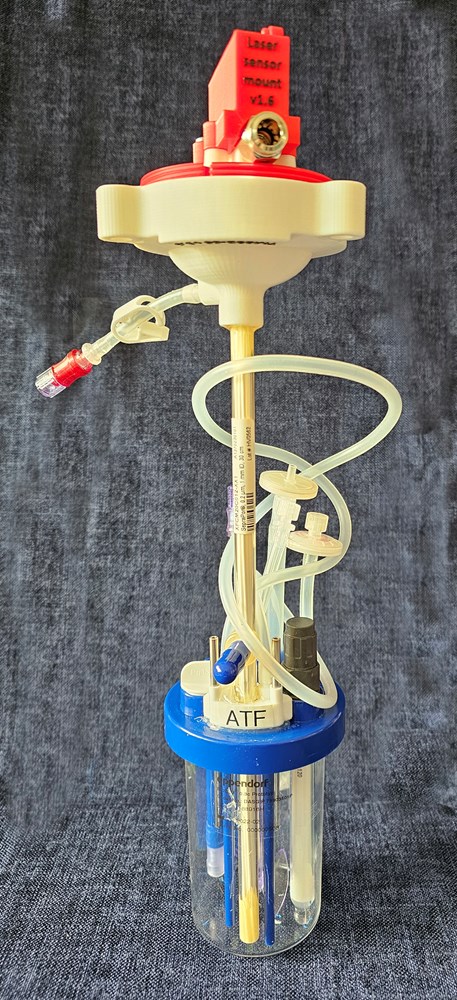

CellRetention-300-HFF12-DASbox |
P-SUB-300 size OD 76 x 120 mm BioBLU for HPD magnetic, pH OneFerm, one free PG13 port, Thalia TM80/30 SUP, integrated HFF pore 0.2 µm, 12 x 1.0 mm lumen, 88 cm2 area, model D02-P20U-10-N, MOQ/Package: 4 units |
31-0030 |
2,800 |
|
|

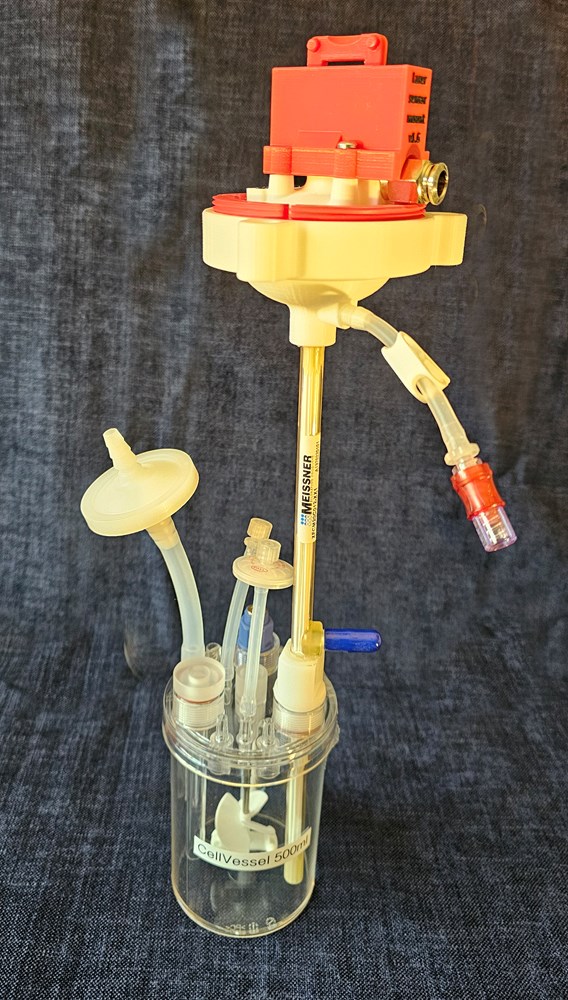

CellRetention-500-HFF14-MST |
P-SUB-500 size OD 82 x 120 mm for MST drive, DO VisiWell, pH OneFerm, one free PG13, Thalia-TM80 with integrated HFF pore 0.2 µm, 14 x 1.0 mm lumen, 180 cm2 area, model D04-P20U-10-N, MOQ/Package: 2 units |
31-0050 |
2,800 |
|
|
CellRetention-500-HFF14-DASbox-RE30 |
P-SUB-500 size OD 82 x 120 mm for RE30 drive, DO VisiWell, pH OneFerm, one free PG13 Thalia-TM80 with integrated HFF pore 0.2 µm, 14 x 1.0 mm lumen, 180 cm2 area, Luer-Lok permeate ports, model D04-P20U-10-N, MOQ/Package: 2 units |
31-0060 |
3,300 |
|
|
CellRetention-1,500-HFF14-MST |
P-SUB-1500 size OD 110 x 230 mm for MST drive, DO VisiWell, pH OneFerm, InCyte patch, Thalia-TM80 with integrated HFF pore 0.2 µm, 14 x 1.0 mm lumen, 180 cm2 area (D04-P20U-10-N), Luer-Loc permeate ports. MOQ/Package: 2 units (drive system and InCyte not included) |
31-1500
|
3,500 |
|
CellRetention-3-HFF75-MST |
P-SUB-3,200 size OD 137 x 270 mm for MST, DO VisiWell or PolarWell, pH OneFerm, InCyte patch, Thalia-TM100 with integrated HFF pore 0.2 µm, 75 x 1.0 mm lumen, 980 cm2 area, 3/4" permeate ports (S04-P20U-10-N), MOQ/Package: 1 unit |
31-0325 |
4,800 |
|
|
CellRetention-13-HFF???-HPD |
P-SUB-13,000 size OD 200 x 450 mm for HPD, DO VisiWell, pH OneFerm, InCyte patch, Clio-TM140 A-SUP integrated HFF, pore 0.2 µm, 1.0 mm lumen, ?,?00 cm2 area, 3/4" side ports (N0?-P20U-10-N), MOQ/Package: 1 unit |
31-1301 |
7,500 |
|
|
CellRetention-30-HFF???-HPD |
P-SUB-30,000 size OD 250 x 650 mm for HPD, DO VisiWell, pH OneFerm, InCyte patch, Clio-TM140 A-SUP with integrated HFF, pore 0.2 µm, 1.0 mm lumen, ?,?00 cm2 area, 3/4" side ports (N0?-P20U-10-N), MOQ/Package: 1 unit |
31-3001 |
ask us |
